SENSOR - MASS AIR FLOW (MAF)

Service repair no - 19.22.25

Remove

  1. Disconnect battery earth lead.

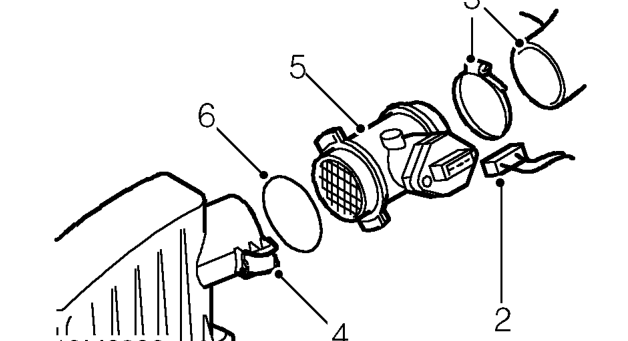

Sensor - mass air flow (maf) – Disconnect battery earth lead.
  1. Disconnect multiplug from MAF sensor.
  2. Release clip securing air intake hose to MAF sensor and disconnect hose.
  3. Release 2 clips securing MAF sensor to air filter.
  4. Remove MAF sensor.
  5. Remove and discard ’O’ ring.

Refit

  1. Clean ’O’ ring recess in air filter.
  2. Fit NEW ’O’ ring to MAF sensor.
  3. Fit MAF sensor to air filter, secure with clips.
  4. Fit clip to intake hose.
  5. Connect intake hose to MAF sensor and secure clip.
  6. Connect multiplug to MAF sensor.
  7. Connect battery earth lead.
