PUMP - FUEL INJECTION (FIP)

Service repair no - 19.30.07

Remove

  1. Disconnect battery earth lead.
  2. Remove plenum chamber. See this section.
  3. Remove FIP timing belt. See ENGINE - ’L’ SERIES, Repairs.
  4. Drain cooling system. See COOLING SYSTEM - ’L’ SERIES, Adjustments.

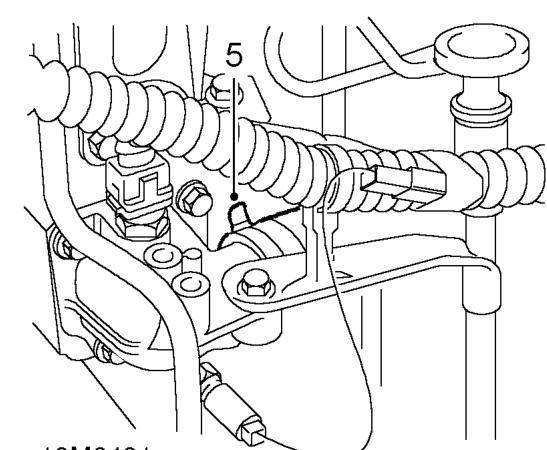

Pump - fuel injection (fip) – Drain cooling system. See COOLING SYSTEM - ’L’ SERIES, Adjustments.
  1. Loosen clip and disconnect top hose from cylinder head elbow.

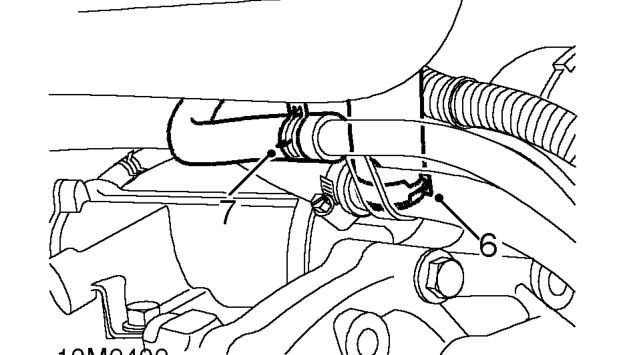

Pump - fuel injection (fip) – Loosen clip and disconnect top hose from cylinder head elbow.
  1. Loosen clip and disconnect top hose from engine oil cooler.
  2. Loosen clip and disconnect top hose from coolant rail.

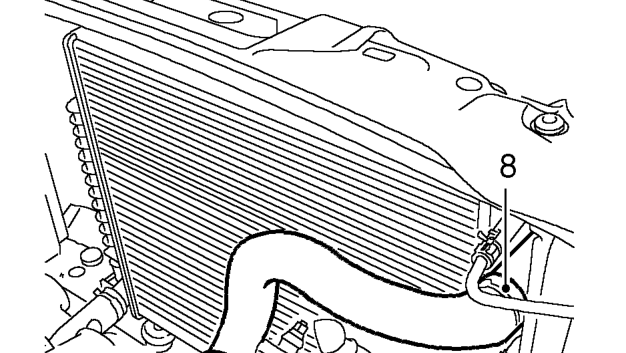

Pump - fuel injection (fip) – Loosen clip and disconnect top hose from coolant rail.
  1. Loosen clip and disconnect top hose from radiator.
  2. Remove top hose.

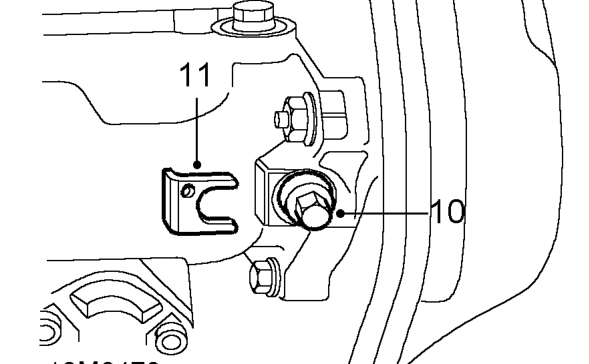

Pump - fuel injection (fip) – Remove top hose.
  1. Loosen FIP shaft clamp bolt.
  2. Remove spacer from clamp bolt.
  3. Tighten clamp bolt to 31 Nm.

CAUTION: DO NOT exceed specified torque. Damage to the shaft will render the FIP inoperable.
