CHAMBER - PLENUM

Service repair no - 19.42.02

Remove

  1. Remove engine acoustic cover. See ENGINE - ’L’ SERIES, Repairs.

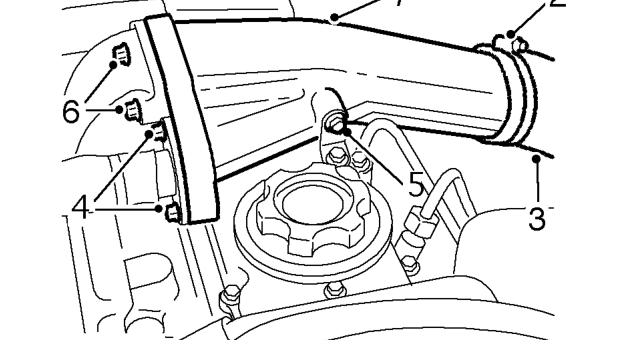

Chamber - plenum – Remove engine acoustic cover. See ENGINE - ’L’ SERIES, Repairs.
  1. Loosen clip securing intercooler outlet hose to plenum chamber.
  2. Disconnect intercooler outlet hose from plenum chamber.
  3. Remove 2 bolts securing EGR pipe to plenum chamber.
  4. Remove bolt securing plenum chamber to camshaft cover bracket.
  5. Remove 2 bolts securing plenum chamber to inlet manifold.
  6. Remove plenum chamber.
  7. Remove gasket.

Refit

  1. Clean mating faces of inlet manifold and plenum chamber.
  2. Use a NEW gasket and fit plenum chamber to inlet manifold. Fit bolts and tighten to 9 Nm.
  3. Position EGR pipe to plenum chamber, fit bolts and tighten to 9 Nm.
  4. Fit bolt securing plenum chamber to camshaft cover bracket and tighten to 9 Nm.
  5. Connect intercooler outlet hose to plenum chamber and tighten clip.
  6. Fit engine acoustic cover. See ENGINE - ’L’ SERIES, Repairs.
