HIGH PRESSURE PIPES - FUEL INJECTION

Service repair no - 19.60.14

Remove

  1. Disconnect battery earth lead.
  2. Remove plenum chamber. See this section.
High pressure pipes - fuel injection – Remove plenum chamber. See this section.

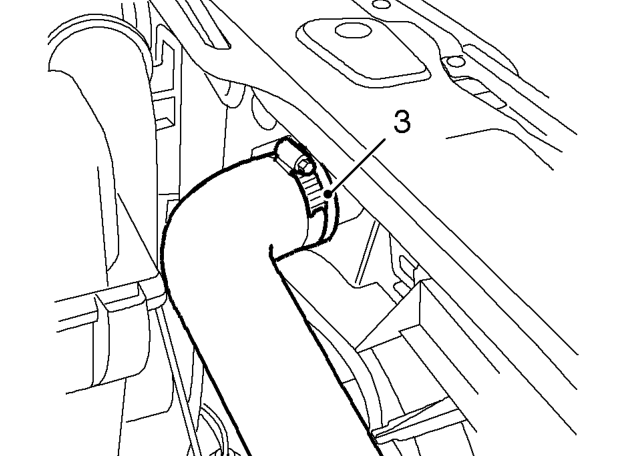

  1. Loosen clip and remove outlet hose from intercooler.
High pressure pipes - fuel injection – Loosen clip and remove outlet hose from intercooler.

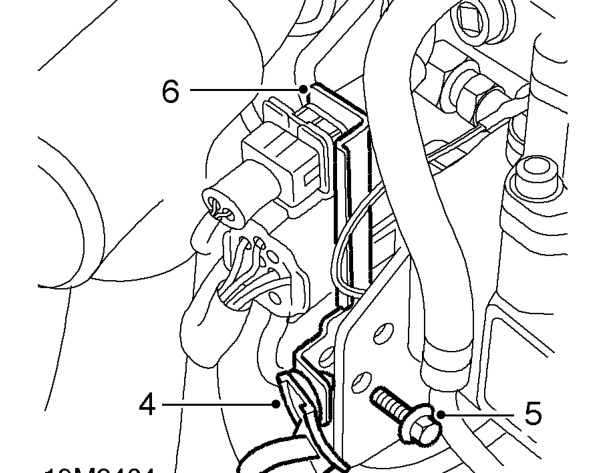

  1. Release engine harness clip from multiplug bracket on FIP.
  2. Remove bolt securing multiplug bracket to FIP support bracket.
  3. Pull multiplug bracket clear of FIP.
High pressure pipes - fuel injection – Pull multiplug bracket clear of FIP.

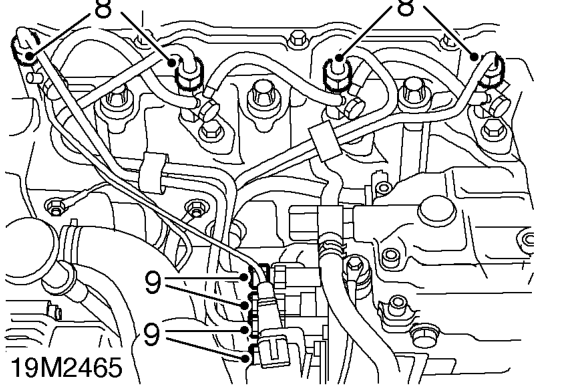

  1. Position absorbent cloth around fuel injection pipe connections to collect fuel spillage.
  2. Loosen injector pipe unions at injectors.
  3. Loosen injector pipe unions at FIP.

CAUTION: To prevent damage to fuel injection pipes or components use 2 spanners when loosening unions.

  1. Remove injector pipe set.

CAUTION: Plug the connections.

  1. Remove clips from injector pipes.

Refit

  1. Clean pipes and connections.
  2. Position injector pipes to FIP and injectors. Tighten unions to 28 Nm.

CAUTION: To prevent damage to fuel system pipes or components use 2 spanners when tightening unions.

  1. Fit clips to injector pipes.
  2. Position multiplug bracket and secure with bolt.
  3. Fit engine harness clip to multiplug bracket.
  4. Fit hose to intercooler and tighten clip.
  5. Fit plenum chamber. See this section.
  6. Connect battery earth lead.
