GLOW PLUGS - SET

Service repair no - 19.60.31

Remove

  1. Disconnect battery earth lead.
  2. Remove FIP. See FUEL DELIVERY SYSTEM, Repairs.

Models with air conditioning

  1. Remove alternator. See ELECTRICAL, Repairs.

All models

  1. Drain cooling system. See COOLING SYSTEM - ’L’ SERIES, Adjustments.
All models – Drain cooling system. See COOLING SYSTEM - ’L’ SERIES, Adjustments.

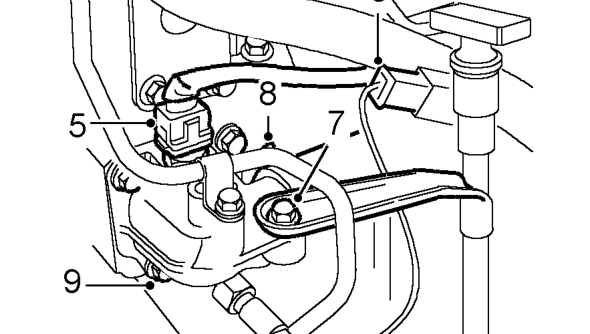

  1. Disconnect multiplug from coolant temperature sensor.
  2. Disconnect temperature gauge sensor.
  3. Remove bolt securing dipstick tube bracket to coolant outlet elbow.
  4. Release clip and disconnect radiator top hose from coolant outlet elbow.
  5. Remove 4 bolts securing coolant outlet elbow to cylinder head.
All models – Remove 4 bolts securing coolant outlet elbow to cylinder head.

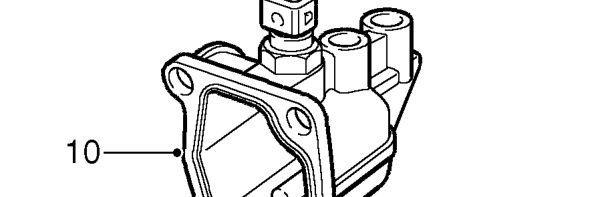

  1. Remove coolant outlet elbow, remove and discard seal.
All models – Remove coolant outlet elbow, remove and discard seal.

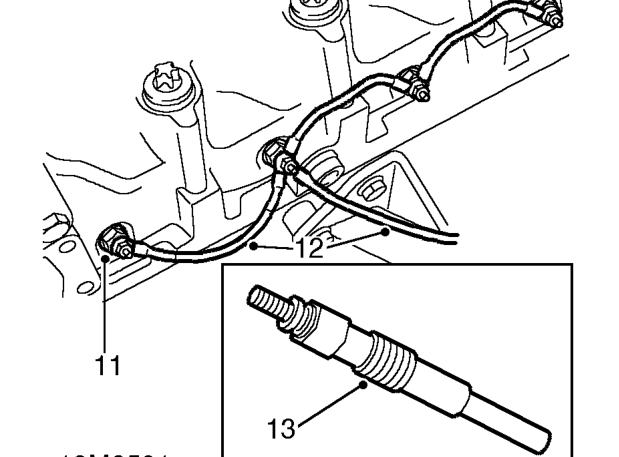

  1. Remove 4 nuts securing feed leads to glow plugs.
  2. Release feed lead from terminal and remove link lead.
  3. Remove 4 glow plugs.
