INTERCOOLER

Service repair no - 19.42.15

Remove

  1. Remove front grille. See BODY, Exterior fittings.
  2. Remove cooling fan assembly. See COOLING SYSTEM - ’L’ SERIES, Repairs.

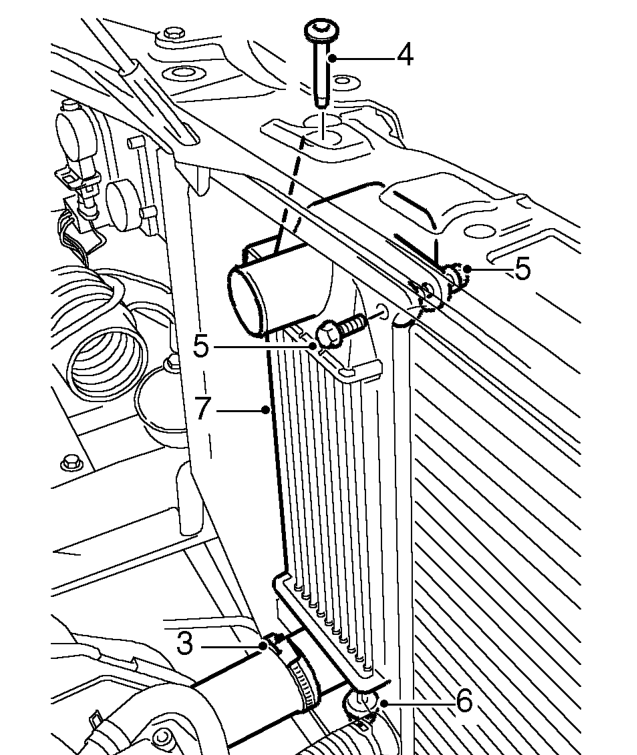

Intercooler – Remove cooling fan assembly. See COOLING SYSTEM - ’L’ SERIES, Repairs.
  1. Release clip securing intercooler bottom hose and disconnect hose.
  2. Remove intercooler threaded retainer from top of bonnet platform.
  3. Remove nut and bolt from top of intercooler.
  4. Lift intercooler to release from lower mounting and radiator.
  5. Remove intercooler.

Refit

  1. Fit intercooler to radiator and lower mounting locations.
  2. Fit nut and bolt to top of intercooler and tighten to 7 Nm .
  3. Fit intercooler retainer to top of bonnet platform.
  4. Connect bottom hose to intercooler and tighten clip.
  5. Fit cooling fan assembly. See COOLING SYSTEM - ’L’ SERIES, Repairs.
  6. Fit front grille. See BODY, Exterior fittings.
