EXPANSION - TANK - COOLANT

Service repair no - 26.15.01

Remove

  1. Position container to collect coolant.

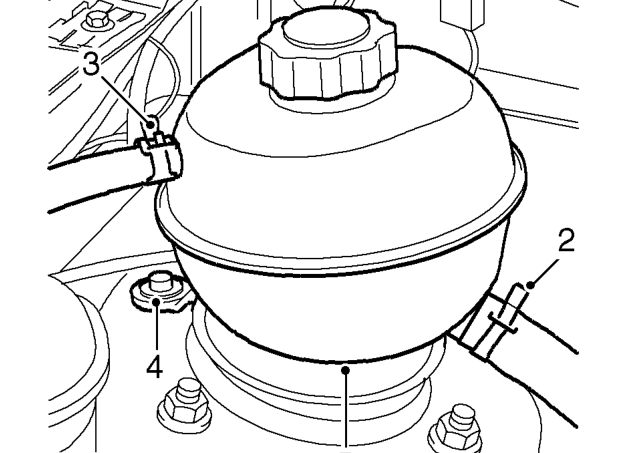

Expansion - tank - coolant – Position container to collect coolant.
  1. Release clip and disconnect bottom hose from expansion tank.
  2. Release clip and disconnect top hose from expansion tank.
  3. Remove scrivet securing expansion tank to inner wing.
  4. Remove expansion tank from inner wing location.

Refit

  1. Fit expansion tank to inner wing location.
  2. Secure expansion tank with scrivet.
  3. Connect bottom hose to expansion tank and secure with clip.
  4. Connect top hose to expansion tank and secure with clip.
  5. Top-up and check level of engine coolant.

MOTOR - COOLING FAN

Service repair no - 26.25.22

Remove

  1. Remove engine acoustic cover. See ENGINE - ’L’ SERIES, Repairs.

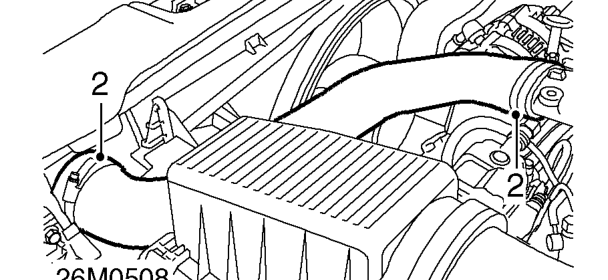

Motor - cooling fan – Remove engine acoustic cover. See ENGINE - ’L’ SERIES, Repairs.
  1. Release 2 clips securing top intercooler hose and remove hose.
  2. Remove battery. See ELECTRICAL, Repairs.

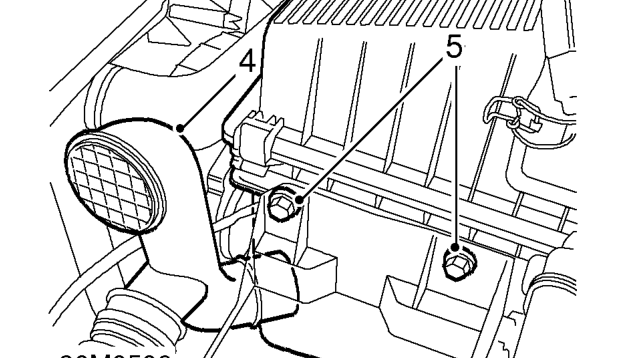

Motor - cooling fan – Remove battery. See ELECTRICAL, Repairs.
  1. Disconnect air intake elbow from air cleaner assembly and resonator box, pipe.
  2. Remove 2 bolts securing air cleaner assembly to battery carrier, lift assembly off locating peg and position assembly aside.
