Cooling system - L SeriesRadiator

RADIATOR

Service repair no - 26.40.01

Remove

  1. Remove intercooler. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  2. Drain cooling system. See Adjustments.

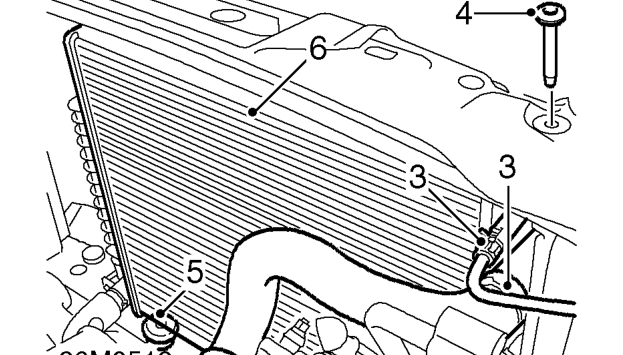

Radiator – Drain cooling system. See Adjustments.
  1. Release 2 clips from radiator top hoses and disconnect hoses.
  2. Remove radiator threaded retainer from top of bonnet platform.
  3. Lift radiator to release from lower mounting.
  4. Remove radiator.

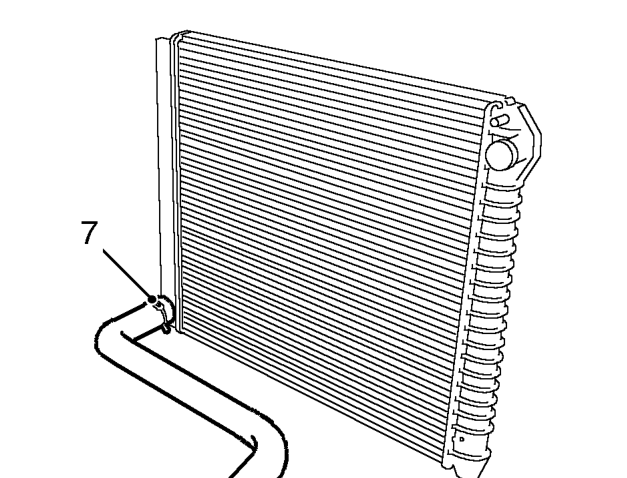

Radiator – Remove radiator.
  1. Release clip from radiator lower hose and disconnect hose.

Refit

  1. Connect lower hose to radiator and secure with clip.
  2. Fit radiator to lower mounting location.
  3. Fit radiator retainer to top of bonnet platform.
  4. Connect radiator top hoses and secure with clips.
  5. Fill cooling system. See Adjustments.
  6. Fit intercooler. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
