PUMP - COOLANT - WITH AIR CONDITIONING

Service repair no - 26.50.01/20

Remove

  1. Drain cooling system. See Adjustments.
  2. Remove alternator. See ELECTRICAL, Repairs.

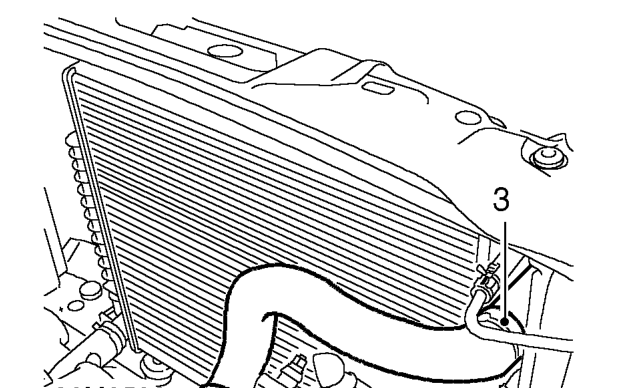

Pump - coolant - with air conditioning – Remove alternator. See ELECTRICAL, Repairs.
  1. Loosen clip and release top hose from radiator.

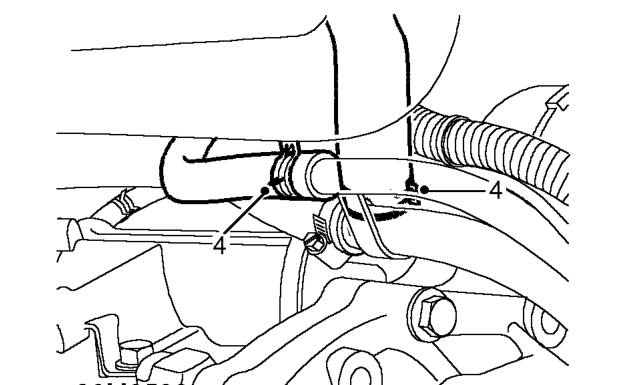

Pump - coolant - with air conditioning – Loosen clip and release top hose from radiator.
  1. Loosen clip and release top hose from oil cooler and engine coolant rail.

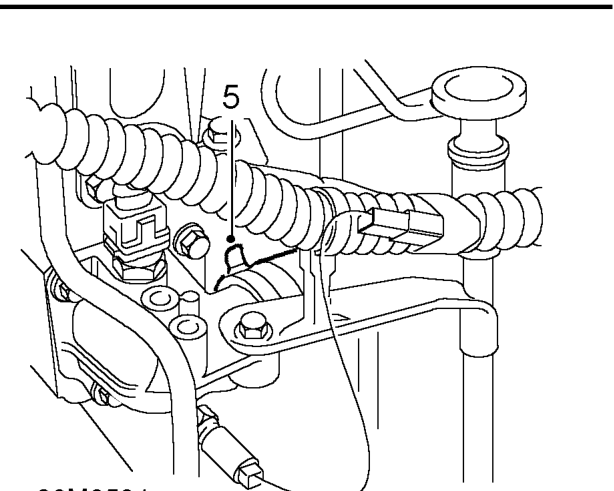

Pump - coolant - with air conditioning – Loosen clip and release top hose from oil cooler and engine coolant rail.
  1. Loosen clip and remove top hose from engine coolant elbow.

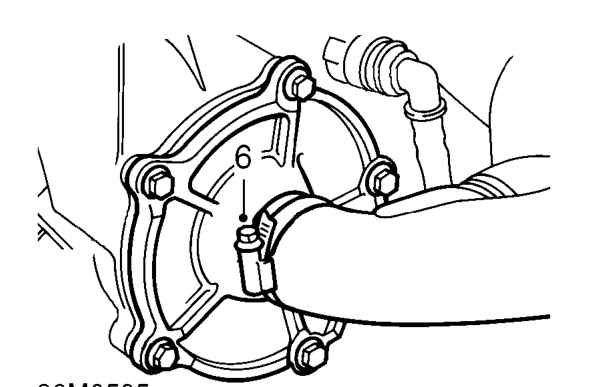

Pump - coolant - with air conditioning – Loosen clip and remove top hose from engine coolant elbow.
  1. Loosen clip and release coolant hose from pump housing.
