Cooling system - L SeriesPump - coolant

PUMP - COOLANT

Service repair no - 26.50.01

Remove

  1. Drain cooling system. See Adjustments.

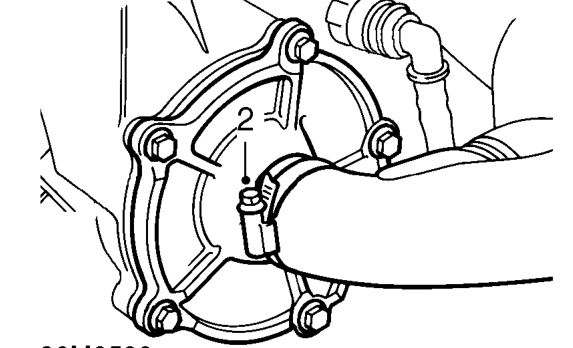

Pump - coolant – Drain cooling system. See Adjustments.
  1. Release clip and disconnect coolant hose from pump housing.

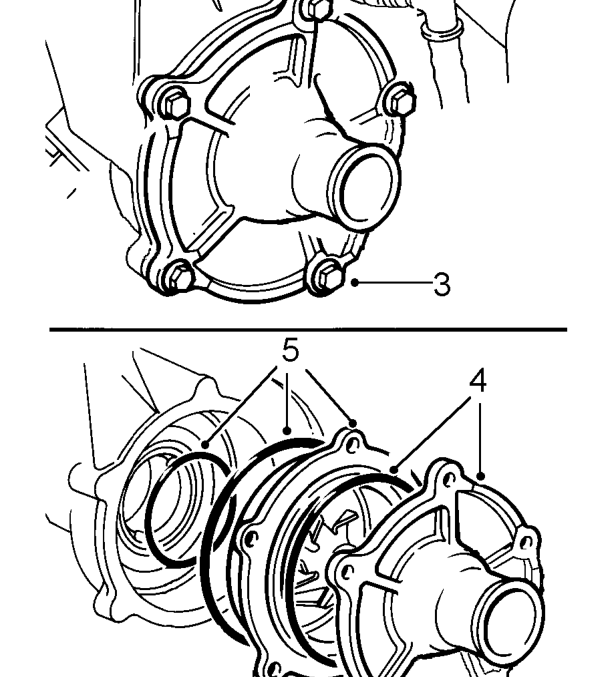

Pump - coolant – Release clip and disconnect coolant hose from pump housing.
  1. Remove 5 bolts securing cover to coolant pump.
  2. Remove cover and discard ’O’ ring.
  3. Remove coolant pump from housing and discard ’O’ ring.

Refit

  1. Clean coolant pump housing and mating faces.
  2. Lubricate NEW ’O’ rings and fit to coolant pump and coolant pump cover.
  3. Fit coolant pump and cover.
  4. Fit 5 bolts and tighten to 45 Nm.
  5. Connect hose to pump housing and secure clip.
  6. Refill cooling system. See Adjustments.
