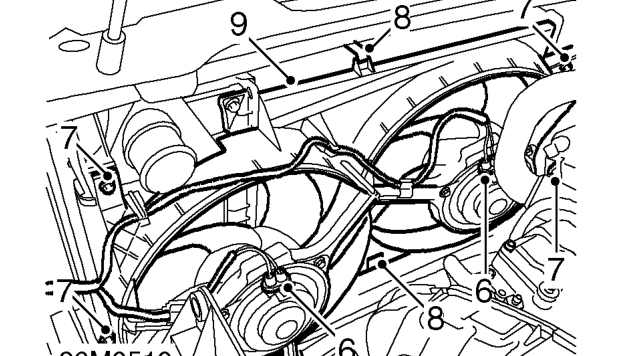

6. Disconnect 2 multiplugs from cooling fan motors and release cables from 4 clips.
7. Remove 4 bolts securing fan assembly to radiator.
8. Remove top and bottom clips securing fan assembly to radiator.
9. Remove fan assembly from engine compartment.

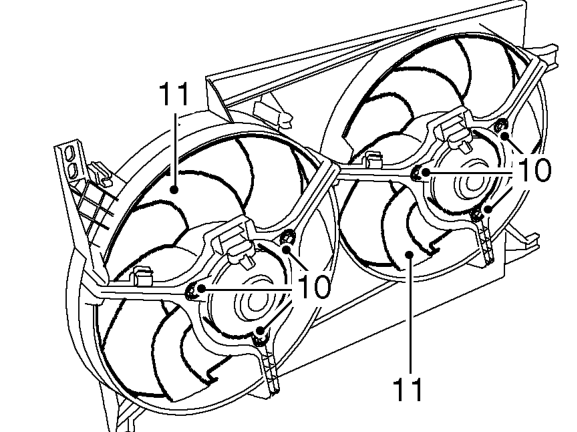

10. Remove 3 bolts securing fan motor to fan assembly.
11. Remove fan motor from fan assembly.

Refit

1. Position fan motor to fan assembly, fit and tighten bolts to 6 Nm .
2. Position fan assembly to radiator and secure with clips.
3. Fit and tighten fan assembly bolts to 6 Nm .
4. Connect multiplugs to cooling fan motors and fit cables to clips.
5. Position air cleaner assembly on battery carrier locating peg, fit and tighten bolts.
6. Connect air intake elbow to air cleaner assembly and resonator box, pipe.
7. Fit battery. See ELECTRICAL, Repairs.
8. Fit top intercooler hose and secure clips.
9. Fit engine acoustic cover. See ENGINE - ’L’ SERIES, Repairs.
