INJECTORS

Service repair no - 19.60.12

Remove

  1. Disconnect battery earth lead.
  2. Remove plenum chamber. See this section.
  3. Position absorbent cloth around fuel injectors to absorb any fuel spillages.

NOTE: No. 1 injector incorporates the needle lift sensor.

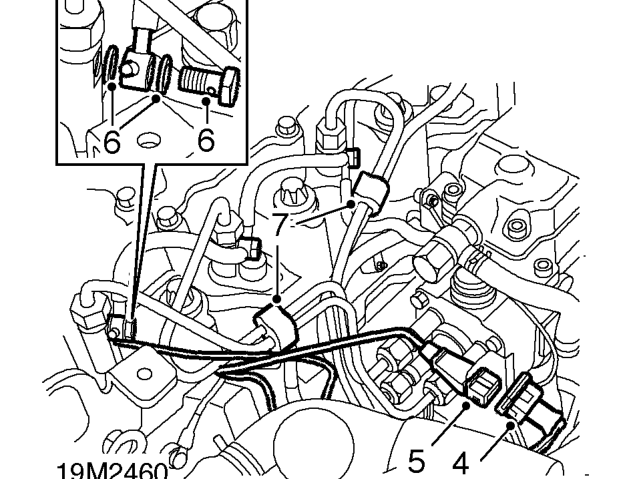

Injectors – Position absorbent cloth around fuel injectors to absorb any fuel spillages.
  1. Disconnect engine harness multiplug from needle lift sensor.
  2. Release needle lift sensor harness from bracket on FIP.
  3. Remove spill return hose banjo bolts and discard sealing washers.
  4. Release clips holding injector pipes together.

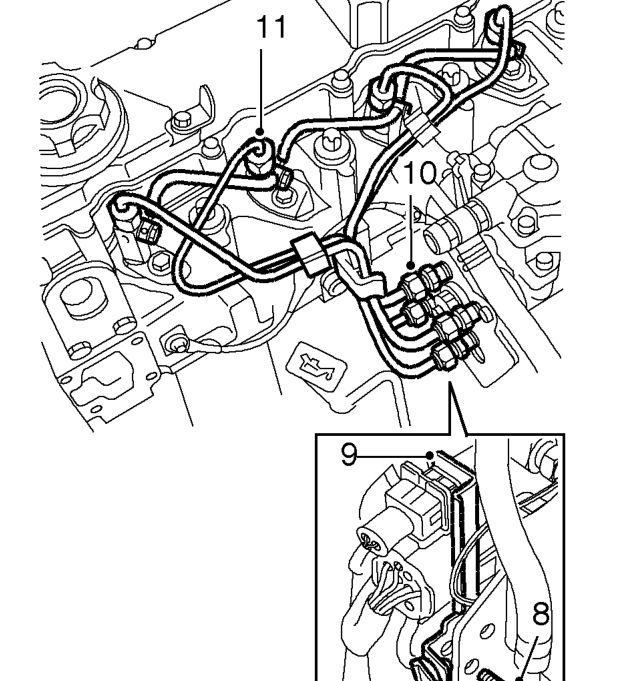

Injectors – Release clips holding injector pipes together.

CAUTION: To prevent damage to fuel system pipes or components use 2 spanners when loosening or tightening unions.

  1. Remove bolt securing multiplug bracket to FIP mounting bracket.
  2. Move multiplug bracket clear of injector pipe unions.
  3. Loosen injector pipe unions at FIP.
  4. Loosen unions and move pipes clear of injectors.

CAUTION: Plug the connections to prevent the ingress of dirt.
