RELAY MODULE - ENGINE MANAGEMENT

Service repair no - 18.30.71

Remove

  1. Disconnect battery earth lead.

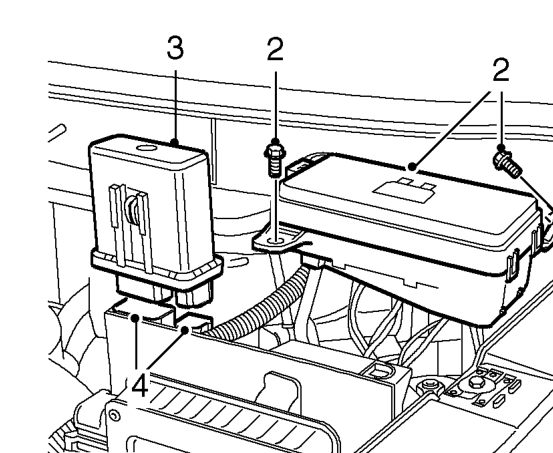

Relay module - engine management – Disconnect battery earth lead.
  1. Remove 2 bolts and position engine compartment fuse box aside.
  2. Release relay module from mounting bracket.
  3. Disconnect 2 multiplugs from relay module.
  4. Remove relay module.

Refit

  1. Position relay module and connect multiplugs.
  2. Secure relay module to mounting bracket.
  3. Position fuse box and tighten bolts to 4 Nm.
  4. Connect battery earth lead.

AIR - CLEANER

Service repair no - 19.10.01

Remove

  1. Remove battery. See ELECTRICAL, Repairs.

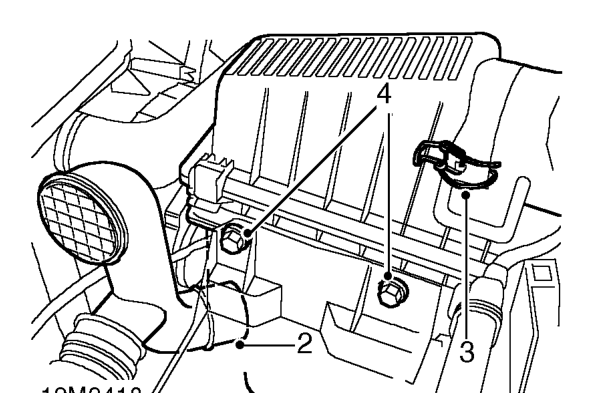

Air - cleaner – Remove battery. See ELECTRICAL, Repairs.
  1. Release air intake hose from bottom of air cleaner.
  2. Release 2 clips and disconnect MAF sensor from air cleaner.
  3. Remove 2 bolts securing air cleaner to battery tray and remove air cleaner.

Refit

  1. Position air cleaner to battery tray. Fit bolts and tighten to 9 Nm.

NOTE: Ensure bottom of air filter is located on peg.

  1. Connect MAF sensor and secure with clips.
  2. Connect air intake hose to bottom of air cleaner.
  3. Fit battery. See ELECTRICAL, Repairs.
