THROTTLE POTENTIOMETER - RHD

Service repair no - 19.22.49

Remove

  1. Remove passenger compartment fuse box. See ELECTRICAL, Repairs.

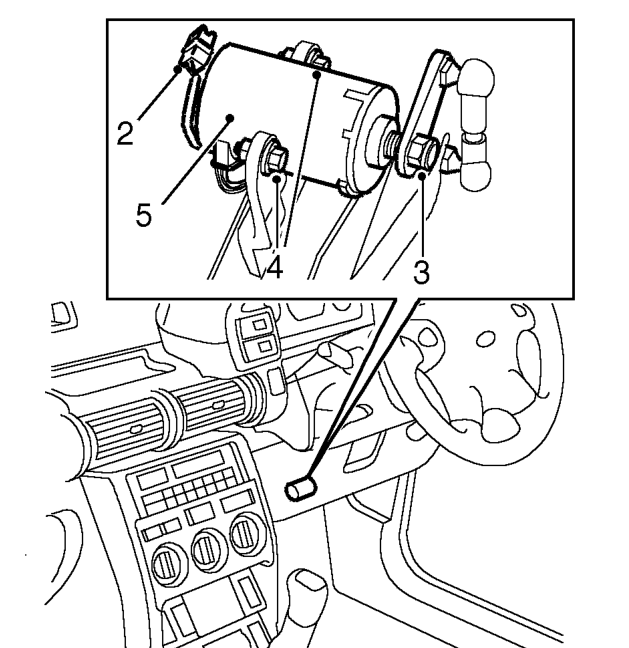

Throttle potentiometer - rhd – Remove passenger compartment fuse box. See ELECTRICAL, Repairs.
  1. Release throttle potentiometer multiplug from bracket and disconnect multiplug from main harness.
  2. Remove nut securing lever to potentiometer.
  3. Remove 2 nuts and bolts securing potentiometer to throttle pedal bracket.
  4. Remove throttle potentiometer.

Refit

  1. Fit throttle potentiometer and secure with nuts and bolts.
  2. Connect throttle potentiometer multiplug to main harness and secure multiplug to bracket.

Setting

  1. Hold throttle pedal up, to ensure throttle is closed. While held in this position, fit lever to potentiometer and secure with nut supplied in kit.
  2. Fit passenger compartment fuse box. See ELECTRICAL, Repairs.
  3. To ensure the potentiometer is set correctly, the system must be checked using TestBook.
