Engine management system - EDCSensor - intake air temperature (iat)

SENSOR - INTAKE AIR TEMPERATURE (IAT)

Service repair no - 18.30.09

Remove

  1. Disconnect battery earth lead.
  2. Remove engine acoustic cover. See ENGINE - ’L’ SERIES, Repairs.

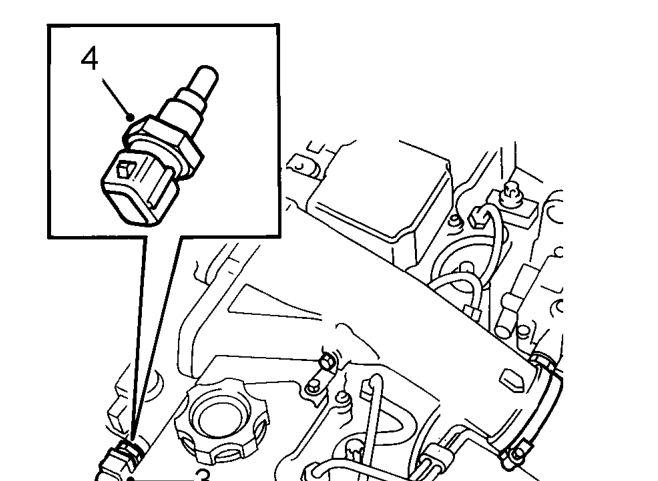

Sensor - intake air temperature (iat) – Remove engine acoustic cover. See ENGINE - ’L’ SERIES, Repairs.
  1. Disconnect multiplug from IAT sensor.
  2. Remove IAT sensor.

Refit

  1. Clean threads of IAT sensor.
  2. Clean mating faces of IAT sensor and inlet manifold.
  3. Apply Loctite 577 to sensor thread
  4. Fit IAT sensor and tighten to 12 Nm.
  5. Connect multiplug to IAT sensor.
  6. Fit engine acoustic cover. See ENGINE - ’L’ SERIES, Repairs.
  7. Connect battery earth lead.

SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP)

Service repair no - 18.30.56

Remove

  1. Disconnect battery earth lead.

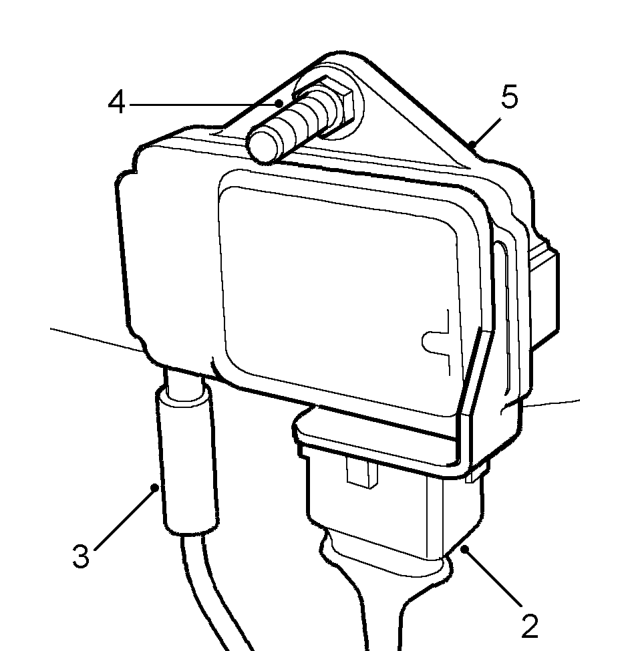

Sensor - manifold absolute pressure (map) – Disconnect battery earth lead.
  1. Disconnect multiplug from MAP sensor.
  2. Disconnect boost pressure sensing pipe from MAP sensor.
  3. Remove nut securing MAP sensor to bulkhead.
  4. Remove MAP sensor.

Refit

  1. Position MAP sensor and tighten nut to 5 Nm.
  2. Connect boost pressure sensing pipe to MAP sensor.
  3. Connect multiplug to MAP sensor.
  4. Connect battery earth lead.
