Land Rover Freelander Workshop Manual (1998-2000)09 · Engine management system - EDC
09 · Engine

Pump - fuel injection (fip) (page 2 of 4)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Engine management system - EDCPump - fuel injection (fip) · page 2 of 4
Diagram

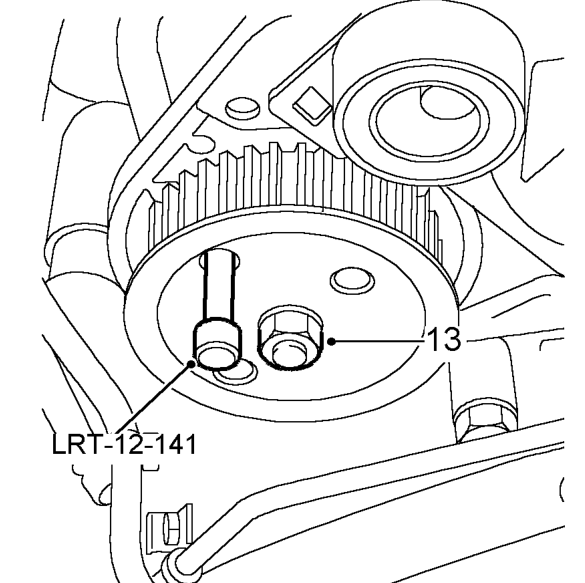

  1. Remove FIP drive gear retaining nut.
  2. Remove locking pin tool LRT-12-141 from FIP drive gear.
Remove locking pin tool LRT-12-141 from FIP drive gear.

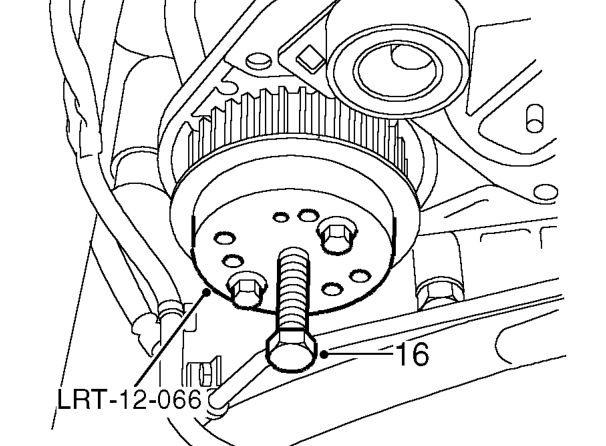

  1. Fit tool LRT-12-066 to FIP drive gear.
  2. Rotate tool LRT-12-066 centre bolt clockwise to release FIP drive gear from taper.
  3. Remove tool LRT-12-066 from drive gear.
Remove tool LRT-12-066 from drive gear.
  1. Remove nut and disconnect feed lead from No 2 glow plug.
Remove nut and disconnect feed lead from No 2 glow plug.

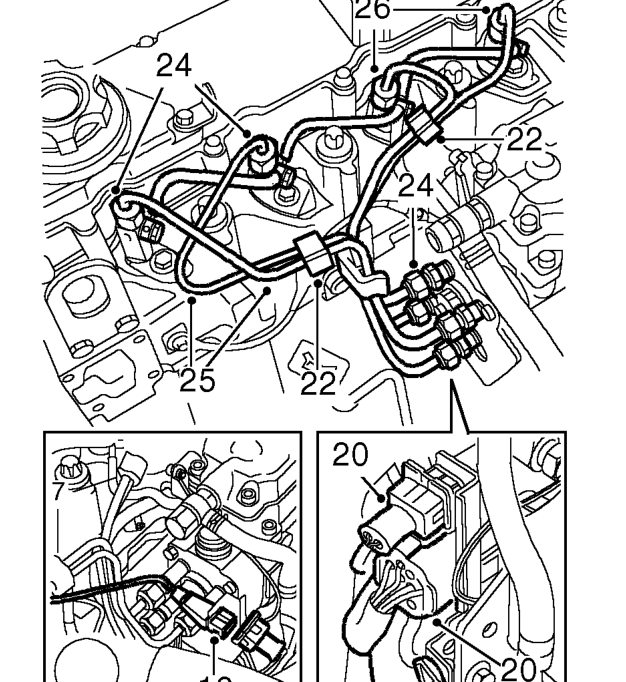

  1. Release injector needle lift sensor multiplug from FIP bracket.
  2. Disconnect 2 FIP multiplugs.
  3. Release engine harness from FIP pump bracket.
  4. Remove clamps from the 4 injector pipes.
  5. Position absorbent cloth around fuel pipe connections to collect fuel spillage.
