Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

Horn

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Horn
ElectricalHorn

HORN

Service repair no - 86.30.10

Remove

  1. Remove battery. See this section.

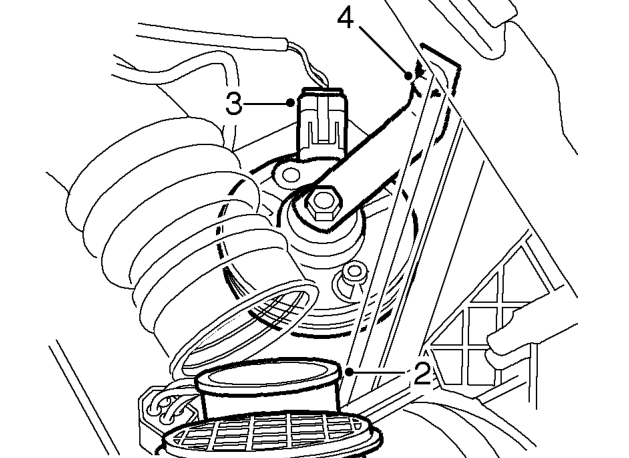

Horn – Remove battery. See this section.
  1. Release air intake hose from intake elbow.
  2. Disconnect multiplug from horn.
  3. Remove bolt securing horn mounting bracket and remove horn.

Refit

  1. Position horn and tighten bolt.
  2. Connect multiplug to horn.
  3. Connect air intake hose to elbow.
  4. Fit battery. See this section.

HEADLAMP ASSEMBLY

Service repair no - 86.40.49

Remove

  1. Remove front bumper valance. See BODY, Exterior fittings.

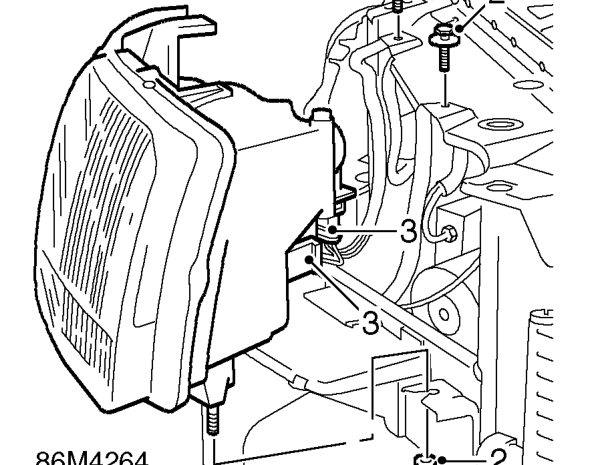

Headlamp assembly – Remove front bumper valance. See BODY, Exterior fittings.
  1. Remove 2 bolts and 1 nut securing head lamp.
  2. Disconnect 2 multiplugs and remove headlamp.

Refit

  1. Position headlamp and connect multiplugs.
  2. Fit and tighten bolts and nut.
  3. Fit front bumper valance. See BODY, Exterior fittings.
  4. Check headlamps adjustment. See Adjustments.
