HARNESS - TAIL DOOR

Service repair no - 86.70.19

Remove

  1. Remove RH rear lower trim casing. See BODY, Interior trim components.
  2. Remove tail door water shedder. See BODY, Doors.

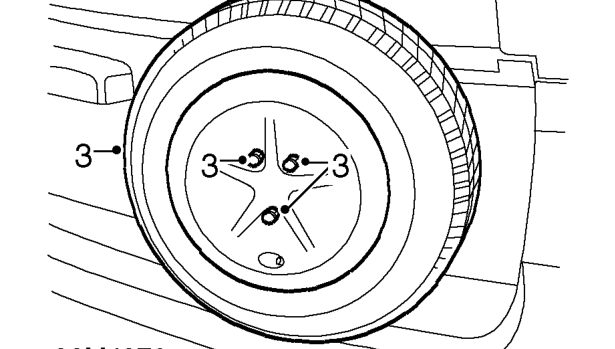

Harness - tail door – Remove tail door water shedder. See BODY, Doors.

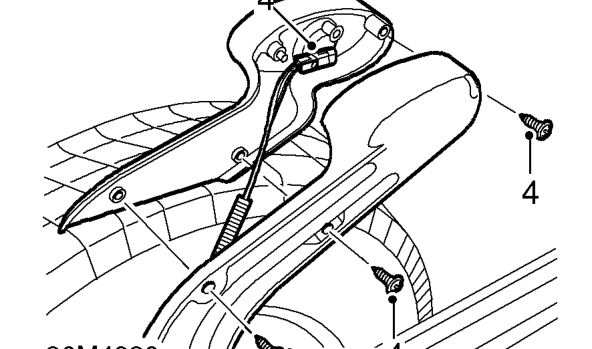

  1. Remove 3 nuts and remove spare wheel.
Harness - tail door – Remove 3 nuts and remove spare wheel.
  1. Remove 3 screws securing CHMSL, disconnect multiplug and remove CHMSL.

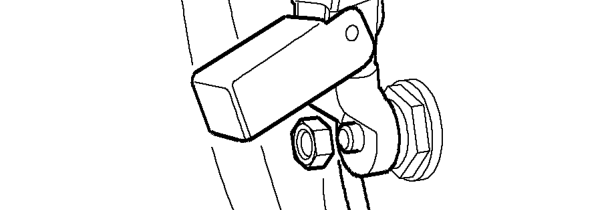

  2. Release 2 harness clips.
Harness - tail door – Release 2 harness clips.

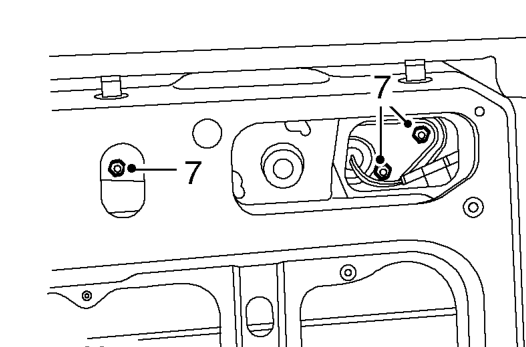

  1. Disconnect rear washer tube from behind spare wheel carrier.
Harness - tail door – Disconnect rear washer tube from behind spare wheel carrier.

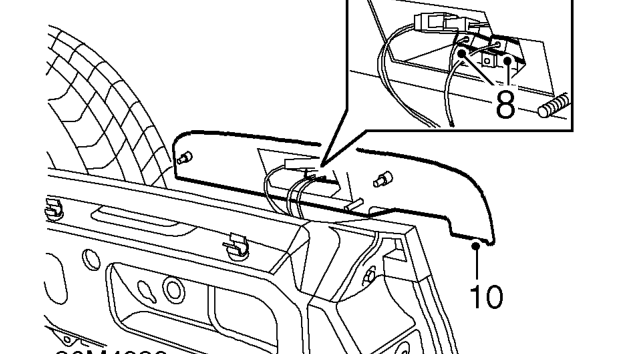

  1. Remove 3 nuts from number plate lamp housing, release housing.
Harness - tail door – Remove 3 nuts from number plate lamp housing, release housing.
  1. Disconnect 2 Lucars and multiplug from housing.
  2. Collect 2 spacers and housing seal.
  3. Remove housing.
