Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

Harness - tail door (page 2 of 2)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
ElectricalHarness - tail door · page 2 of 2
Diagram

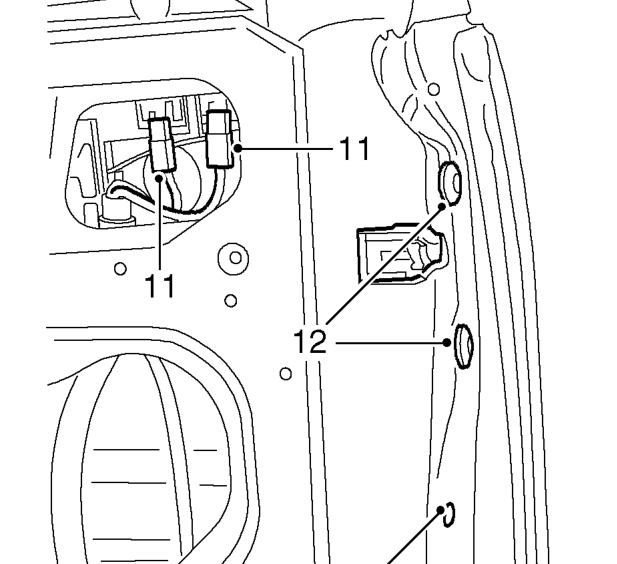

  1. Disconnect 2 Lucars from rear screen element.

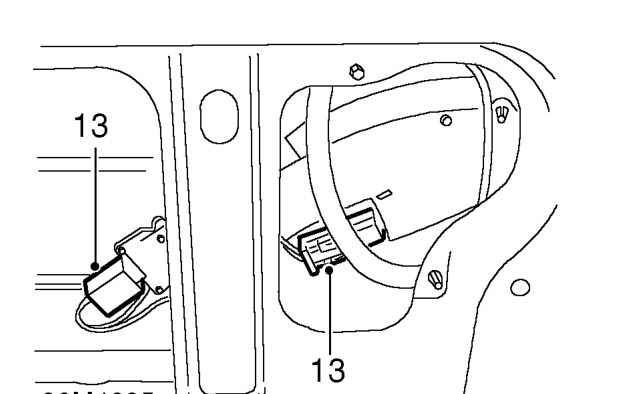

  2. Remove 4 screws from door latch, release door latch to access multiplugs and harness clips.
Remove 4 screws from door latch, release door latch to access multiplugs and harness clips

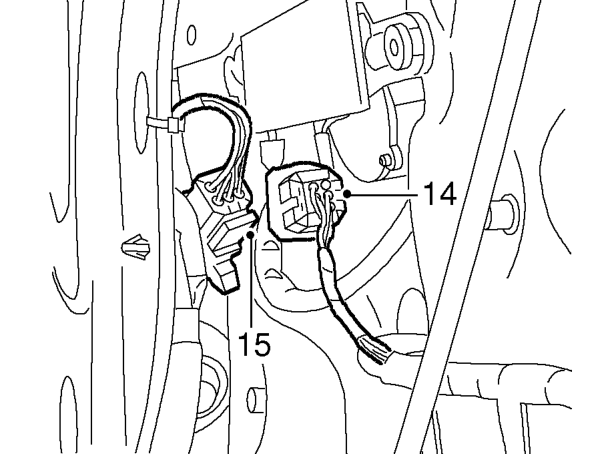

  1. Disconnect 2 multiplugs from door lock.
Disconnect 2 multiplugs from door lock.
  1. Disconnect multiplug from rear wiper motor.

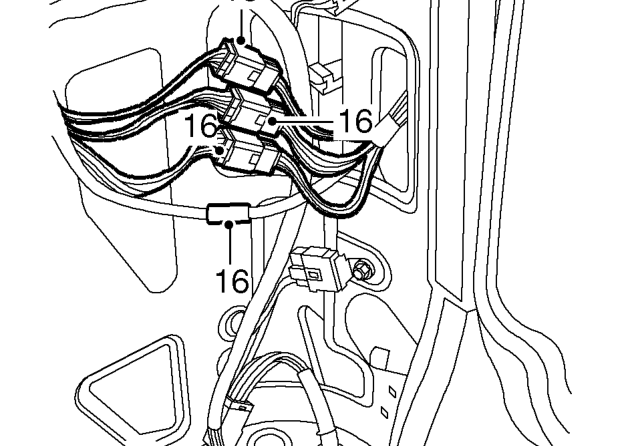

  2. Disconnect multiplug from rear window motor.
Disconnect multiplug from rear window motor.
  1. Release and disconnect 3 multiplugs and washer tube from main harness at ’E’ post.
