Harness - engine - L Series

Refit

1. Position harness to engine.
2. Tighten bolts securing harness shield to oil pump.
3. Connect multiplug to oil pressure sensor.
4. Connect multiplug to alternator.
5. Connect lead to alternator and tighten nut.
6. Connect harness clips to engine coolant rail.
7. Connect multiplugs to TP and IAC sensors.
8. Connect multiplugs to IAT sensor and injector harness.
9. Connect multiplugs to coolant sensors and ignition coil.
10. Connect multiplugs to gearbox speed sensor, crankshaft sensor and oxygen sensor.
11. Connect multiplug to 1st gear switch.
12. Connect reverse lamp leads.
13. Connect Lucar to starter solenoid.
14. Connect lead to starter solenoid and tighten nut.
15. Connect multiplugs to main harness.
16. Connect earth lead multiplug.
17. Connect harness multiplug to fuse box.
18. Position harness leads to fuse box and tighten screws.
19. Fit fuse box cover.
20. Connect multiplug to ECM.
21. Fit battery carrier. See this section.
22. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
23. Fit underbelly panel. See BODY, Exterior fittings.

HARNESS - ENGINE - L SERIES

Service repair no - 86.70.17

Remove

1. Remove alternator. See this section.
2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
3. Remove battery carrier. See this section.

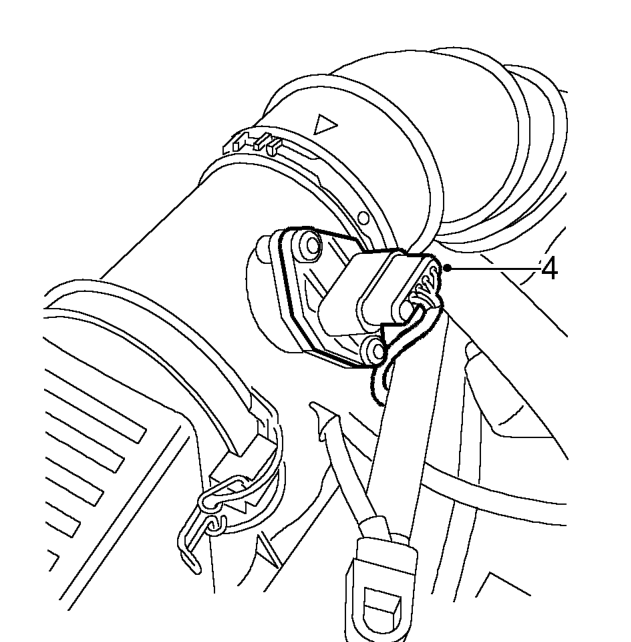

4. Disconnect multiplug from MAF sensor.

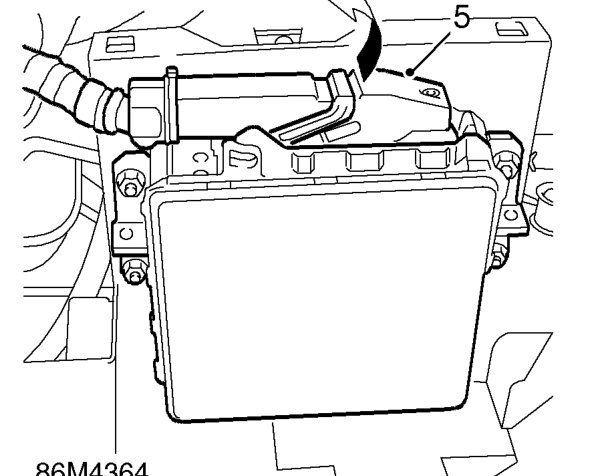

5. Disconnect multiplug from ECM.
