Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

Harness - engine - ’k’ series (page 3 of 3)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
ElectricalHarness - engine - ’k’ series · page 3 of 3
Diagram

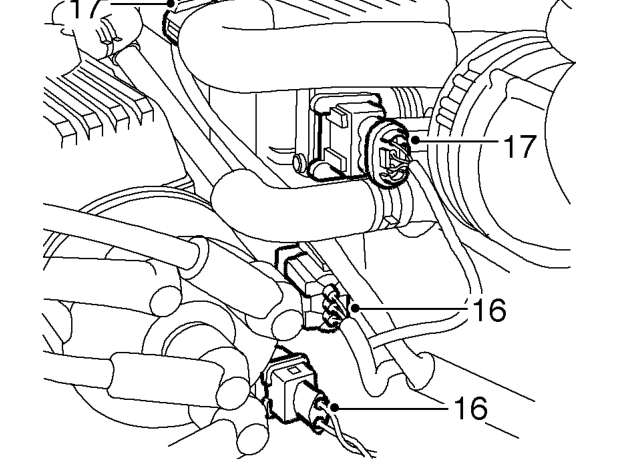

  1. Disconnect multiplugs from IAT sensor and injector harness.
  2. Disconnect multiplugs from IAC and TP sensors.
Disconnect multiplugs from IAC and TP sensors.

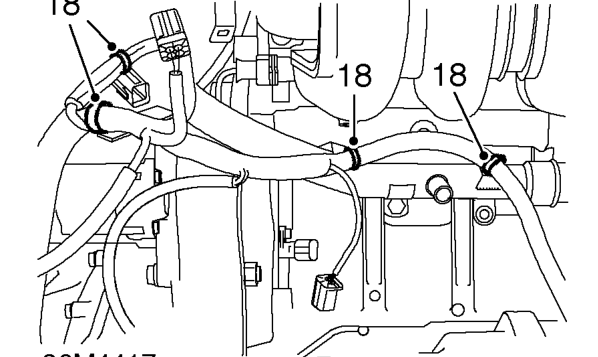

  1. Release 4 harness clips from engine coolant rail.
Release 4 harness clips from engine coolant rail.

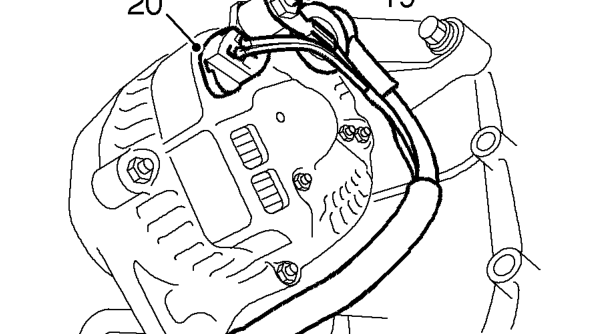

  1. Remove nut and release lead from alternator.
  2. Disconnect multiplug from alternator.
Disconnect multiplug from alternator.

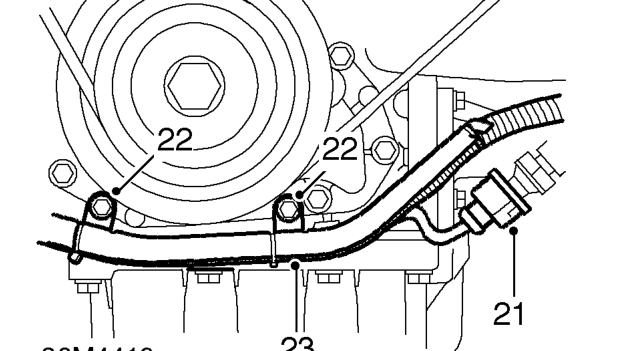

  1. Disconnect multiplug from oil pressure sensor.
  2. Remove 2 bolts securing engine harness shield to oil pump.
  3. Remove engine harness.
