Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

Harness - engine - ’k’ series (page 2 of 3)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
ElectricalHarness - engine - ’k’ series · page 2 of 3
Diagram

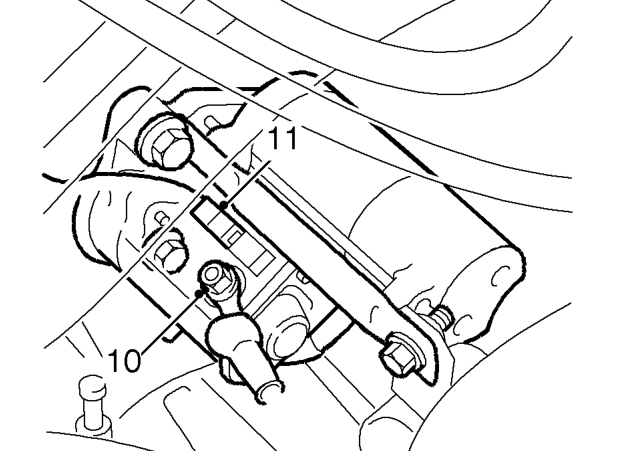

  1. Loosen nut and disconnect lead from starter solenoid.
  2. Release Lucar from starter solenoid.
Release Lucar from starter solenoid.

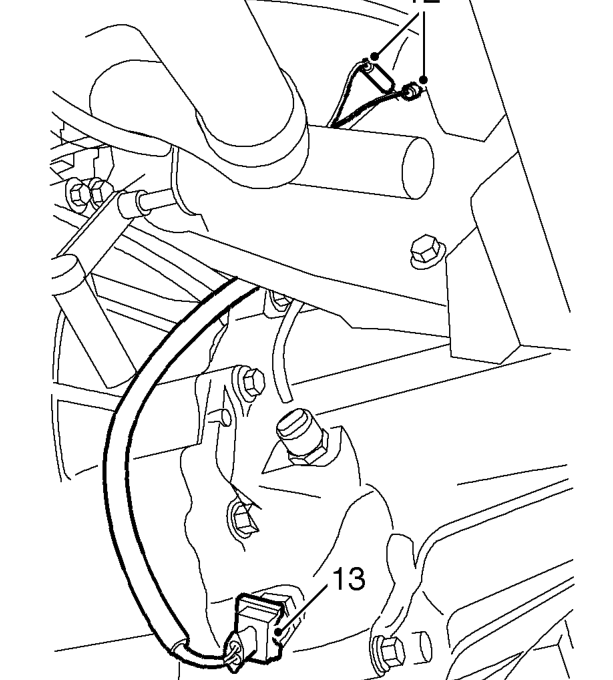

  1. Disconnect reverse lamp switch leads.
  2. Disconnect multiplug from 1st gear switch on gearbox.
Disconnect multiplug from 1st gear switch on gearbox.

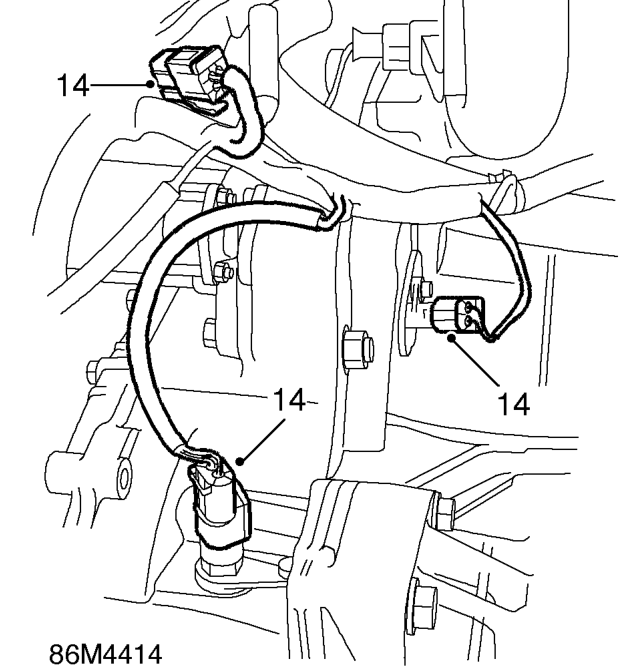

  1. Disconnect multiplugs from gearbox speed sensor, crankshaft sensor and oxygen sensor.
Disconnect multiplugs from gearbox speed sensor, crankshaft sensor and oxygen sensor.

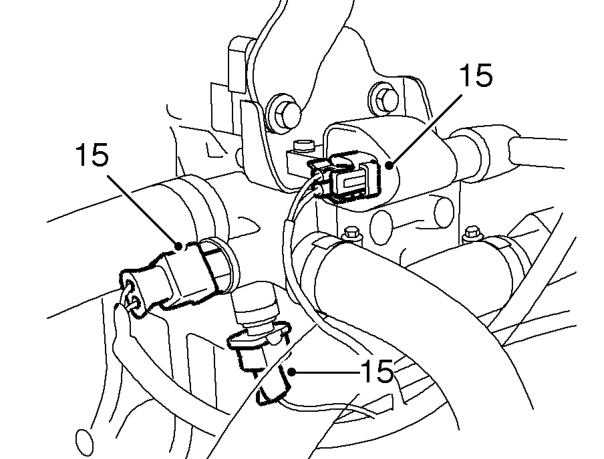

  1. Disconnect multiplugs from coolant sensors and ignition coil.
