Drive belt - alternator - ’k’ series without air conditioning

DRIVE BELT - ALTERNATOR - ’K’ SERIES WITHOUT AIR CONDITIONING

Service repair no - 86.10.03

Remove

1. Disconnect battery earth lead.

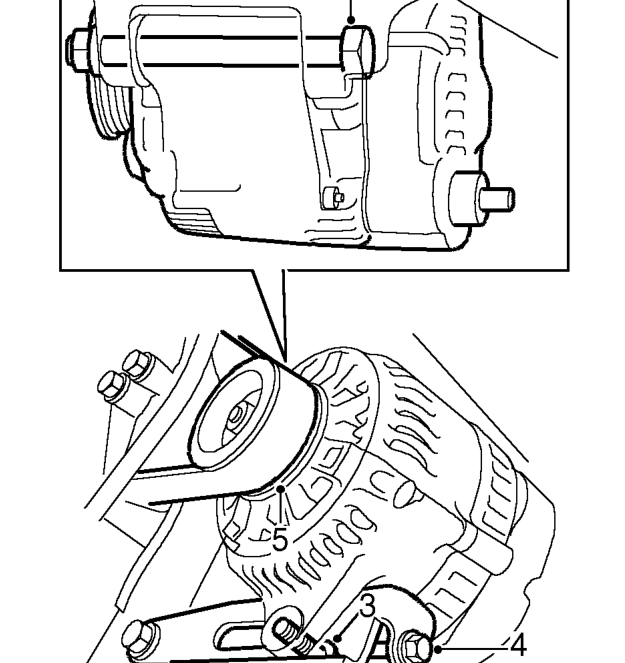

2. Remove PAS pump drive belt. See STEERING, Repairs.

3. Loosen 2 alternator mounting bolts.

CAUTION: Ensure that bolts are loosened sufficiently for alternator to move freely.

4. Release drive belt tension by turning tensioner bolt anti-clockwise.

CAUTION: Do not apply excessive torque to adjusting bolt or damage to bolt will result. If bolt appears to be seized or is difficult to turn, apply suitable anti-seize lubricant to bolt.

5. Release drive belt from alternator pulley.
6. Remove drive belt.

Refit

1. Clean drive belt pulley grooves and ensure grooves are not damaged.
2. Fit drive belt to crankshaft pulley and connect to alternator pulley. Ensure grooves on pulleys and drive belt are correctly located.
3. Adjust drive belt tension. See Adjustments.
4. Fit and adjust PAS pump drive belt. See STEERING, Repairs.
5. Connect battery earth lead.
