RECEIVER - ALARM SYSTEM

Service repair no - 86.77.31

Remove

  1. Remove instrument bezel finisher. See INSTRUMENTS, Repairs.

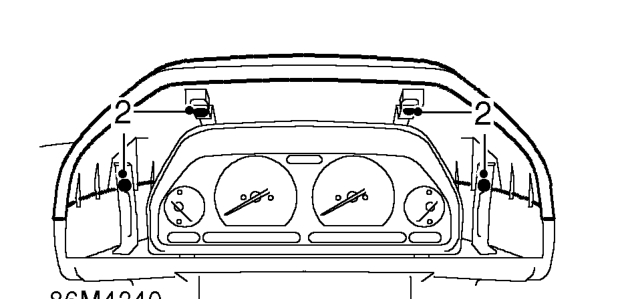

Receiver - alarm system – Remove instrument bezel finisher. See INSTRUMENTS, Repairs.
  1. Remove 4 screws and remove instrument panel upper cover.

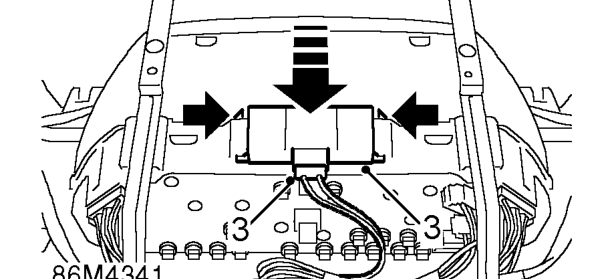

Receiver - alarm system – Remove 4 screws and remove instrument panel upper cover.
  1. Disconnect multiplug and remove alarm receiver from instrument pack.

Refit

  1. Fit alarm receiver and connect multiplug.
  2. Fit instrument panel upper cover and secure with screws.
  3. Fit instrument bezel finisher. See INSTRUMENTS, Repairs.

PASSIVE COIL

Service repair no - 86.77.35

Remove

  1. Remove steering column nacelle See STEERING, Repairs.

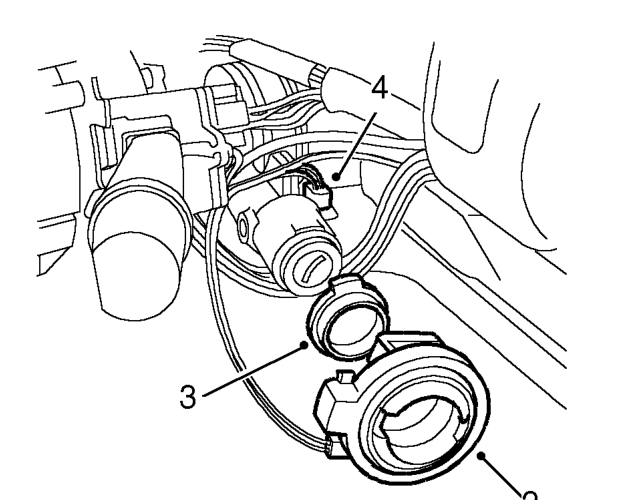

Passive coil – Remove steering column nacelle See STEERING, Repairs.
  1. Release passive coil from column lock
  2. Collect illumination ring.
  3. Release and disconnect multiplug and remove passive coil.

Refit

  1. Fit illumination ring.
  2. Position passive coil, connect and secure multiplug.
  3. Fit steering column nacelle. See STEERING, Repairs.
