Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

Speaker - front - 3 door

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Speaker - front - 3 door
ElectricalSpeaker - front - 3 door

SPEAKER - FRONT - 3 DOOR

Service repair no - 86.50.15

Remove

  1. Remove front door trim casing. See BODY, Doors.
Speaker - front - 3 door – Remove front door trim casing. See BODY, Doors.
  1. Remove 4 screws securing speaker to door.
  2. Disconnect multiplug from speaker.
  3. Remove speaker from door.

Refit

  1. Position speaker to door, and connect multiplug.
  2. Fit and tighten securing screws.
  3. Fit front door trim casing. See BODY, Doors.

SPEAKER - FRONT - 5 DOOR

Service repair no - 86.50.15

Remove

  1. Remove front door trim casing. See BODY, Doors.

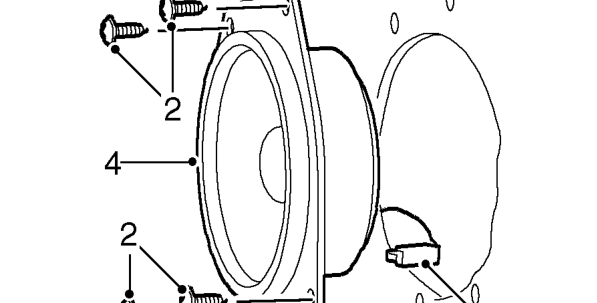

Speaker - front - 5 door – Remove front door trim casing. See BODY, Doors.
  1. Remove 4 screws securing speaker to door.
  2. Disconnect multiplug from speaker.
  3. Remove speaker from door.

Refit

  1. Position front speaker to door, and connect multiplug.
  2. Fit and tighten securing screws.
  3. Fit trim casing. See BODY, Doors.
