Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

Harness - engine - L Series (page 4 of 5)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
ElectricalHarness - engine - L Series · page 4 of 5
Diagram

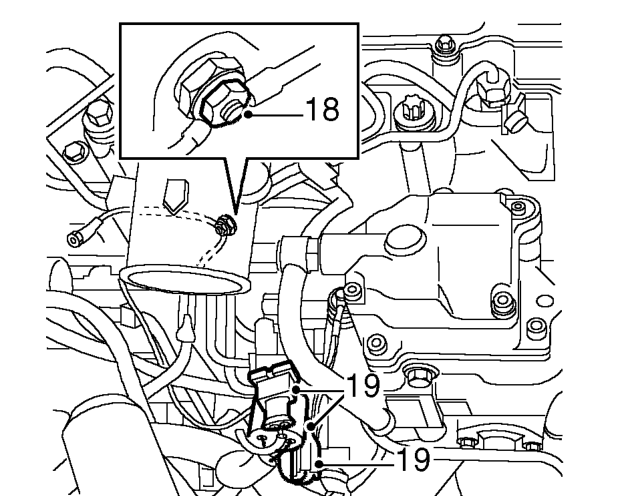

  1. Loosen nut and disconnect lead from No.2 glow plug.
  2. Disconnect 3 multiplug from FIP leads.
Disconnect 3 multiplug from FIP leads.

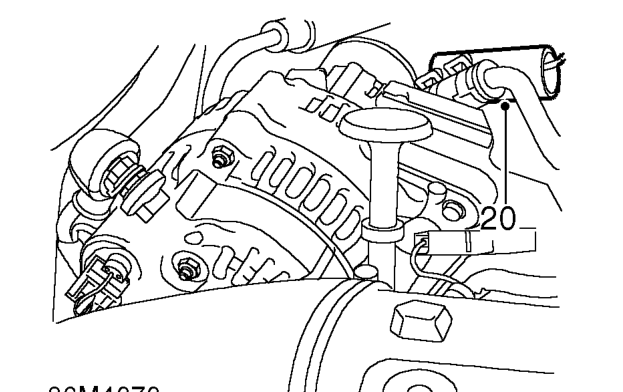

  1. Disconnect multiplug from air conditioning compressor.
Disconnect multiplug from air conditioning compressor.

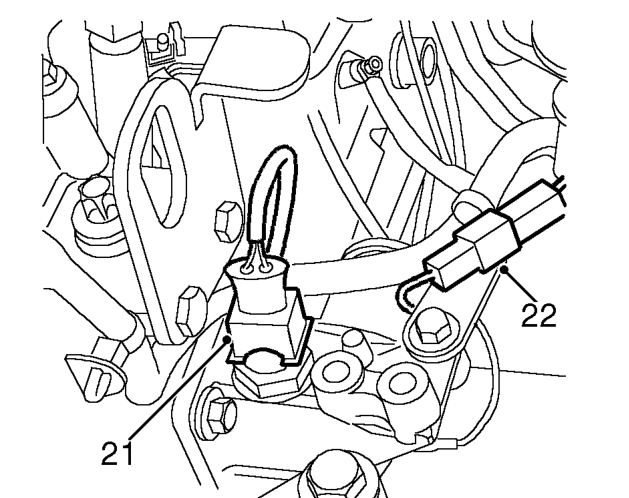

  1. Disconnect multiplug from engine temperature sensor.
  2. Disconnect Lucar from engine temperature transmitter.
Disconnect Lucar from engine temperature transmitter.

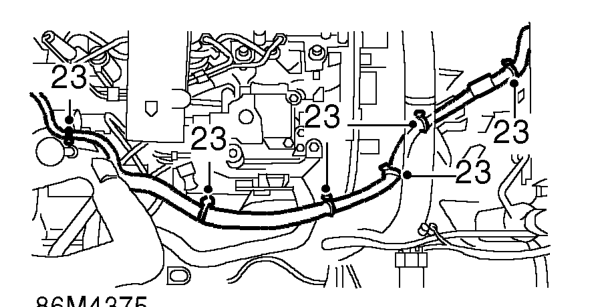

  1. Remove 6 cable ties securing harness to engine.
