Harness - engine - L Series (page 5 of 5)

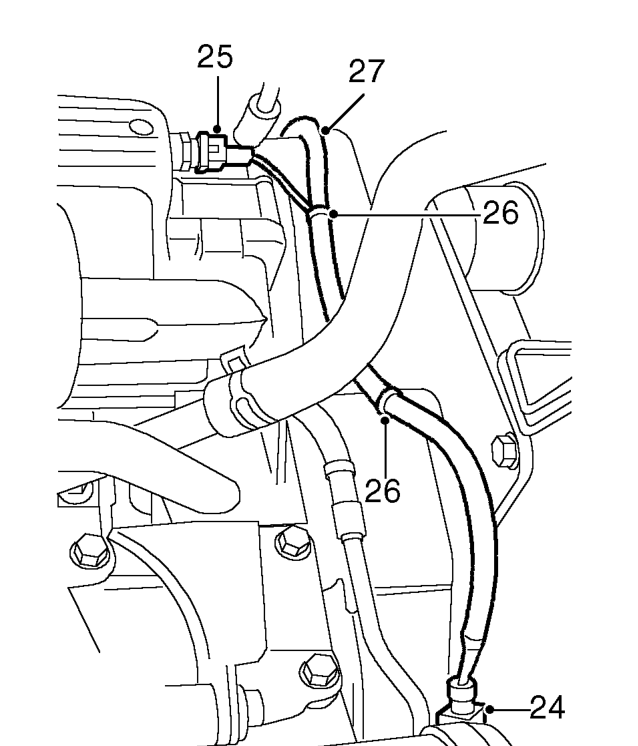

24. Disconnect multiplug from oil pressure sensor.
25. Disconnect multiplug from intake air temperature sensor.
26. Release 2 clips securing harness to camshaft belt cover.
27. Remove engine harness.

Refit

1. Position harness to engine.
2. Connect multiplugs to oil pressure and intake air temperature sensors.
3. Connect Lucar to engine temperature transmitter.
4. Connect multiplugs to engine temperature sensor and air conditioning compressor.
5. Connect multiplugs to FIP.
6. Connect lead to glow plug and tighten nut.
7. Connect gearbox speed sensor multiplug.
8. Connect multiplug to 1st gear switch.
9. Connect reverse lamp leads.
10. Connect Lucar and lead to starter solenoid. Tighten starter lead nut.
11. Connect multiplugs to EGR valve and MAP sensor.
12. Connect multiplugs to main harness.
13. Connect earth lead multiplug.
14. Connect harness multiplug to fuse box.
15. Position harness leads to fuse box and tighten screws. Fit fuse box cover.
16. Connect MAF sensor and ECM multiplugs.
17. Fit battery carrier. See this section.
18. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
19. Fit alternator. See this section.
