Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

Harness - engine - L Series (page 2 of 5)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
ElectricalHarness - engine - L Series · page 2 of 5
Diagram

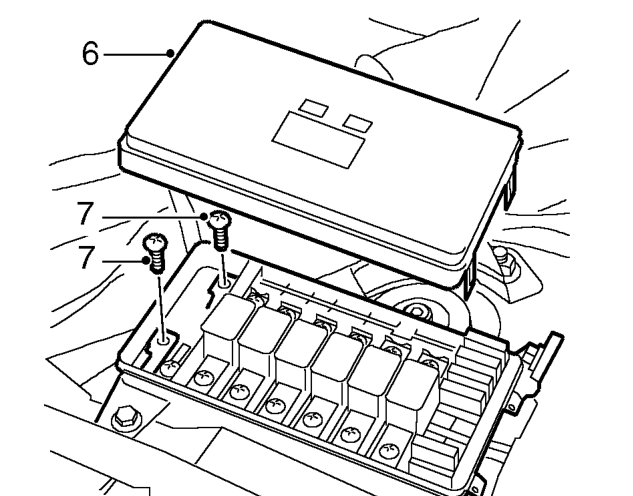

  1. Remove engine fuse box cover.

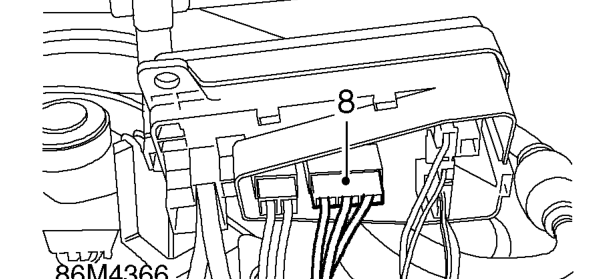

  2. Remove 2 screws and release harness leads from fuse box.
Remove 2 screws and release harness leads from fuse box.

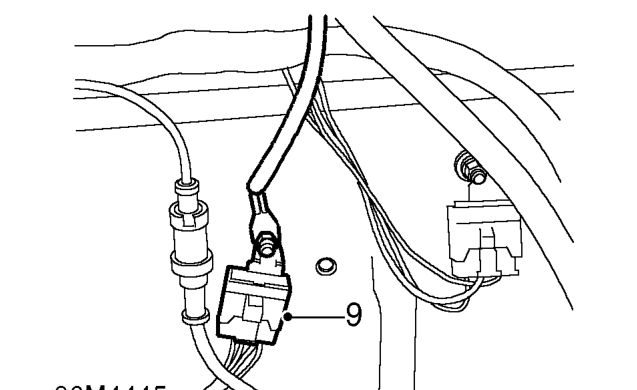

  1. Disconnect harness multiplug from fuse box.
Disconnect harness multiplug from fuse box.
  1. Disconnect earth lead multiplug.
Disconnect earth lead multiplug.

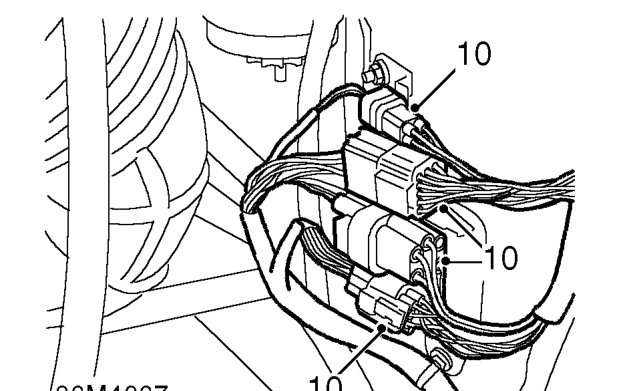

  1. Disconnect 4 engine harness multiplugs from main harness.
Disconnect 4 engine harness multiplugs from main harness.

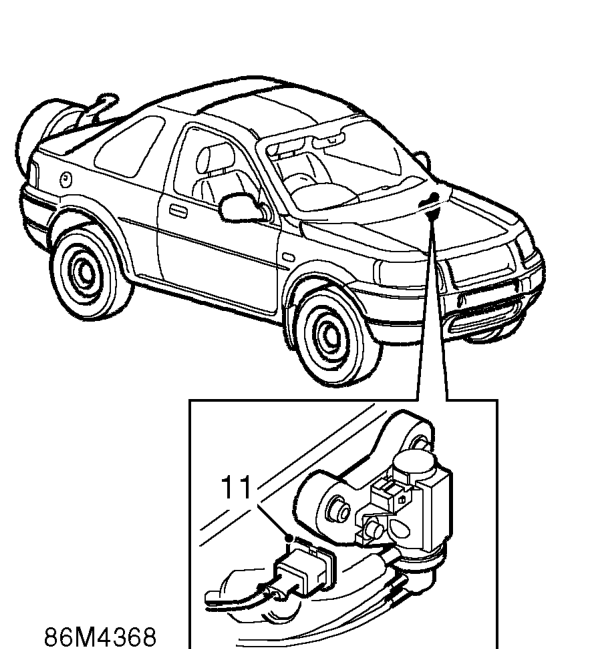

  1. Disconnect multiplug from EGR solenoid valve.
