Land Rover Freelander Workshop Manual (1998-2000)11 · Cooling system - K Series
11 · Engine

Expansion - tank - coolant

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Expansion - tank - coolant
Cooling system - K SeriesExpansion - tank - coolant

EXPANSION - TANK - COOLANT

Service repair no - 26.15.01

Remove

  1. Position container to collect coolant.

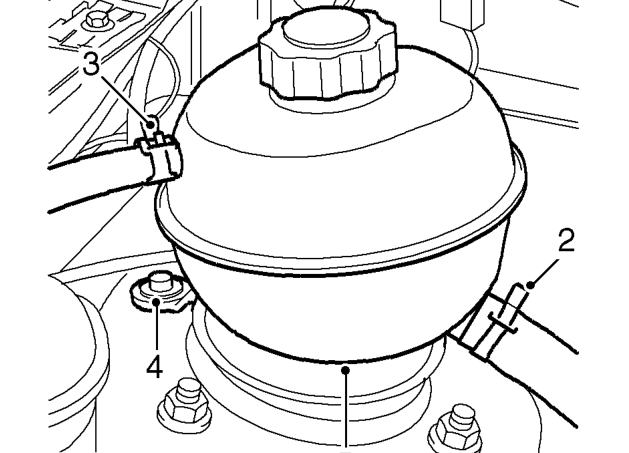

Expansion - tank - coolant – Position container to collect coolant.
  1. Release clip and disconnect bottom hose from expansion tank.
  2. Release clip and disconnect top hose from expansion tank.
  3. Remove scrivet securing expansion tank to inner wing.
  4. Remove expansion tank from inner wing location.

Refit

  1. Fit expansion tank to inner wing location.
  2. Secure expansion tank with scrivet.
  3. Connect bottom hose to expansion tank and secure with clip.
  4. Connect top hose to expansion tank and secure with clip.
  5. Top-up and check level of engine coolant.
