Cooling system - K SeriesMotor - cooling fan

MOTOR - COOLING FAN

Service repair no - 26.25.24

Remove

  1. Disconnect battery earth lead.
Motor - cooling fan – Disconnect battery earth lead.

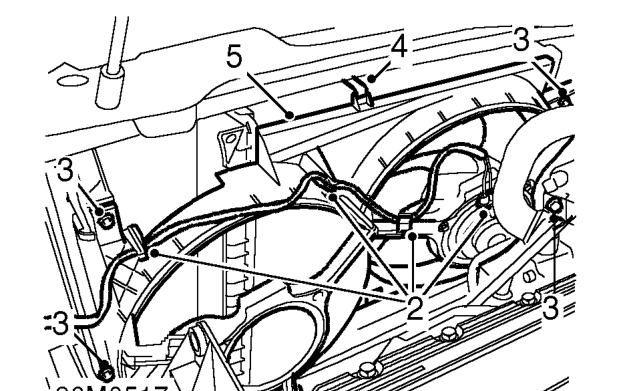

  1. Disconnect multiplug from cooling fan motor and release cable from 3 clips.
  2. Remove 4 bolts securing fan assembly to radiator.
  3. Remove top clip securing fan assembly to radiator.
  4. Remove fan assembly from engine compartment.
Motor - cooling fan – Remove fan assembly from engine compartment.

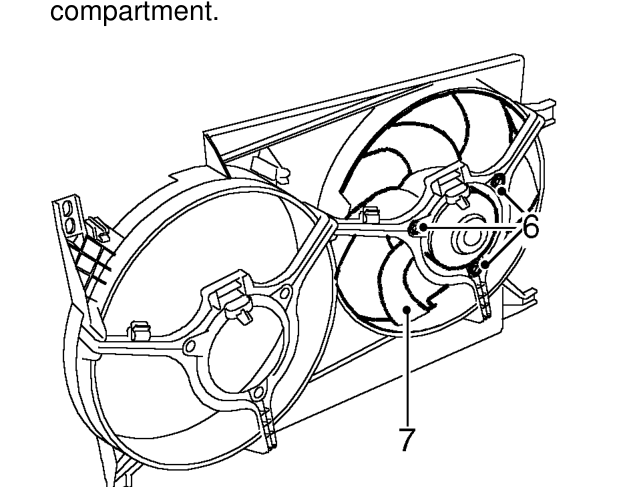

  1. Remove 3 bolts securing fan motor to fan assembly.
  2. Remove fan motor from fan assembly.

Refit

  1. Position fan motor to fan assembly, fit and tighten bolts to 6 Nm.
  2. Position fan assembly to radiator and secure with clip.
  3. Fit and tighten fan assembly bolts to 6 Nm.
  4. Connect multiplugs to cooling fan motors and fit cables to clips.
  5. Connect battery earth lead.
