MOTOR - COOLING FAN - WITH AIR CONDITIONING

Service repair no - 26.25.22/20

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

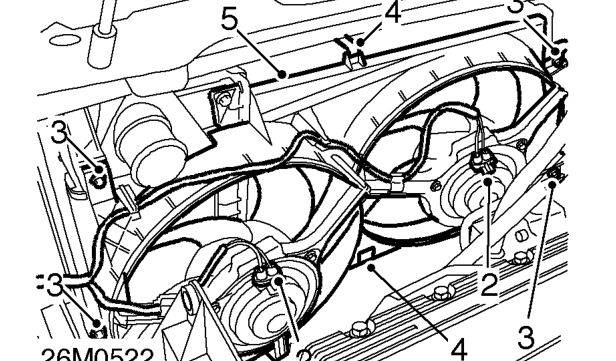

Motor - cooling fan - with air conditioning – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Disconnect 2 multiplugs from cooling fan motors and release cables from 4 clips.
  2. Remove 4 bolts securing fan assembly to radiator.
  3. Remove top and bottom clips securing fan assembly to radiator.
  4. Remove fan assembly from engine compartment.

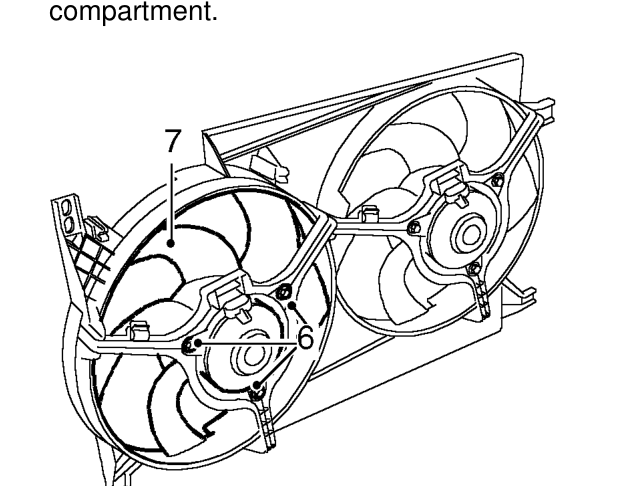

Motor - cooling fan - with air conditioning – Remove fan assembly from engine compartment.
  1. Remove 3 bolts securing fan motor to fan assembly.
  2. Remove fan motor from fan assembly.

Refit

  1. Position fan motor to fan assembly, fit and tighten bolts to 6 Nm.
  2. Position fan assembly to radiator and secure with clips.
  3. Fit and tighten fan assembly bolts to 6 Nm.
  4. Connect multiplugs to cooling fan motors and fit cables to clips.
  5. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
