Land Rover Freelander Workshop Manual (1998-2000)11 · Cooling system - K Series
11 · Engine

Radiator

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Radiator
Cooling system - K SeriesRadiator

RADIATOR

Service repair no - 26.40.01

Remove

  1. Drain cooling system. See Adjustments.
  2. Remove cooling fan. See this section.

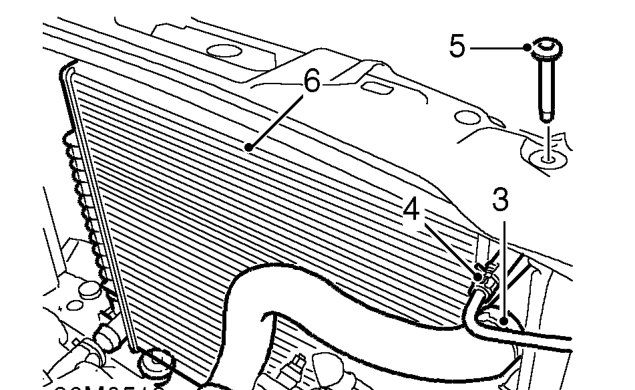

Radiator – Remove cooling fan. See this section.
  1. Release clip and disconnect top hose from radiator.
  2. Release clip and disconnect expansion tank hose from radiator.
  3. Remove radiator threaded retainers from top of bonnet locking platform.
  4. Remove radiator.
  5. Remove lower mounting rubbers from radiator.

Refit

  1. Fit mounting rubbers to radiator.
  2. Position radiator and locate to lower mountings.
  3. Fit radiator threaded retainers.
  4. Position hoses to radiator and secure clips.
  5. Fit cooling fan. See this section.
  6. Fill cooling system. See Adjustments.
