Land Rover Freelander Workshop Manual (1998-2000)24 · Body
24 · Body & interior

Glove box

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Interior trim components › Glove box
BodyGlove box

GLOVE BOX

Service repair no - 76.52.03

Remove

  1. Open glove box lid.
  2. Remove glove box mat.

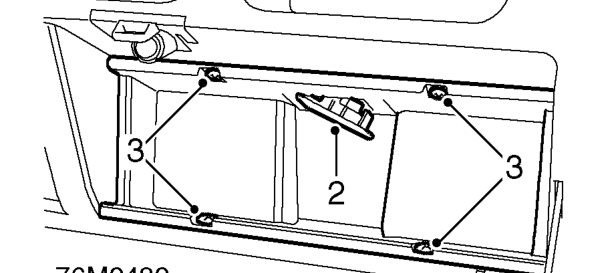

Glove box – Remove glove box mat.
  1. Release illumination lamp from glove box.
  2. Remove 4 screws and remove glove box.

Refit

  1. Position glove box and tighten screws.
  2. Position and secure illumination lamp.
  3. Fit glove box mat.
  4. Close glove box lid.

HEADLINING - 5 DOOR

Service repair no - 76.64.01 Service repair no - 76.64.15

Remove

  1. Remove both A’ post trims. See this section.
  2. Remove both rear quarter upper trim casings. See this section.
  3. Remove both sun visors. See this section.

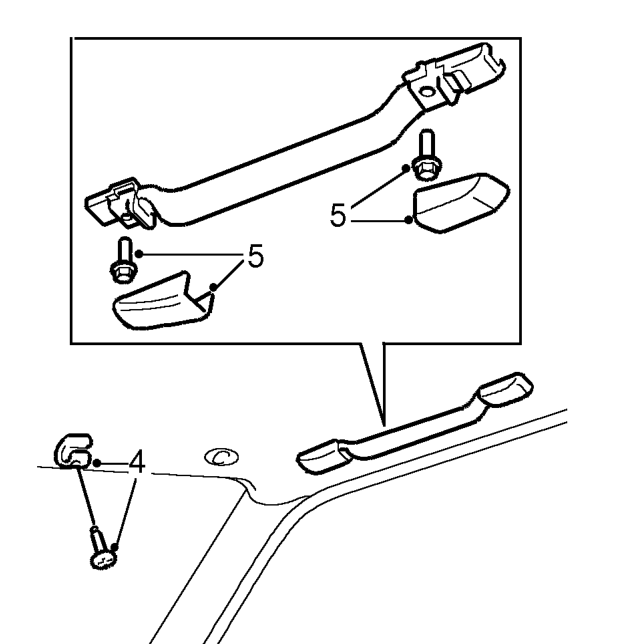

Headlining - 5 door – Remove both sun visors. See this section.
  1. Remove screw from each sun visor clip and collect clips.
  2. Remove screw covers and screws from grab handles and remove grab handles.
  3. Remove grab handle blanking plugs.
