Land Rover Freelander Workshop Manual (1998-2000)24 · Body
24 · Body & interior

Headlining - 3 door

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Interior trim components › Headlining - 3 door
BodyHeadlining - 3 door · page 1 of 2

HEADLINING - 3 DOOR

Service repair no - 76.64.15

Remove

  1. Fold front seat squabs forward.
  2. Remove both sun visors. See this section.
  3. Remove both ’A’ post trims. See this section.

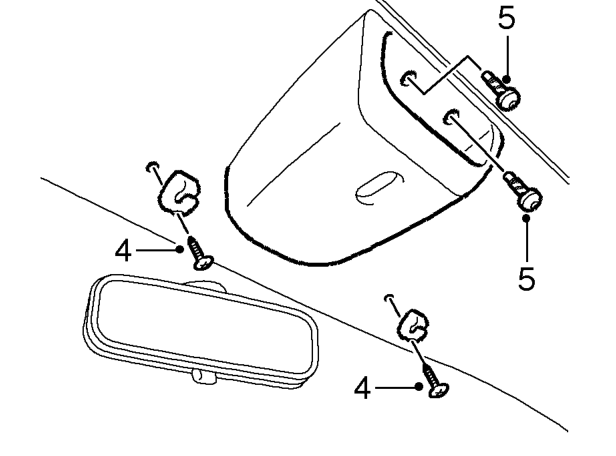

Headlining - 3 door – Remove both ’A’ post trims. See this section.
  1. Remove 2 screws from both sun visor clips and collect clips.
  2. Remove 2 screws securing headlining to front end of roof panel.

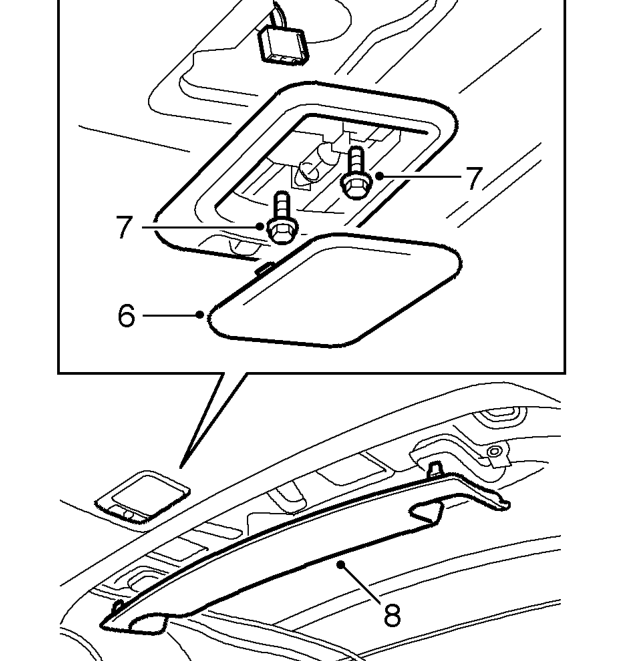

Headlining - 3 door – Remove 2 screws securing headlining to front end of roof panel.
  1. Remove roof lamp lens.
  2. Remove 2 screws, release roof lamp and disconnect multiplug.
  3. Release headlining rear finisher from roof panel and remove finisher.
