Land Rover Freelander Workshop Manual (1998-2000)24 · Body
24 · Body & interior

Casing - rear quarter lower - 3 door

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Interior trim components › Casing - rear quarter lower - 3 door
BodyCasing - rear quarter lower - 3 door

CASING - REAR QUARTER LOWER - 3 DOOR

Service repair no - 76.13.12

Remove

  1. Release rear seat squab and fold seat forward.

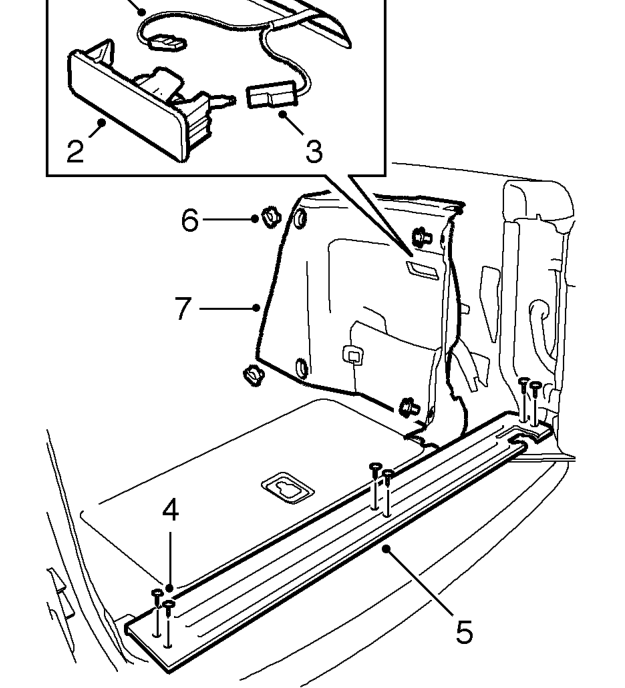

Casing - rear quarter lower - 3 door – Release rear seat squab and fold seat forward.
  1. Release load space lamp from trim casing.
  2. Disconnect 2 Lucars and remove load space lamp.
  3. Remove 6 Torx screws securing luggage compartment carpet retainer.
  4. Remove carpet retainer.
  5. Release 4 turn buckles securing trim casing.
  6. Release and remove trim casing from luggage compartment.

Refit

  1. Position casing in luggage compartment.
  2. Fit turn buckles
  3. Fit luggage compartment carpet retainer and fit Torx screws.
  4. Position load space lamp to casing, connect Lucars and secure lamp in casing.
  5. Reposition rear seat.
