CASING - REAR QUARTER LOWER - 3 DOOR

Service repair no - 76.13.12

Remove

  1. Release rear seat squab and fold seat forward.

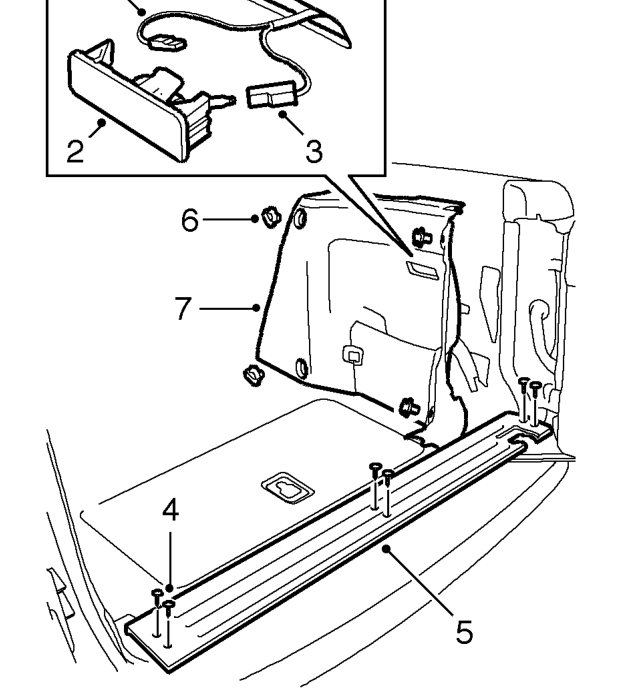

Casing - rear quarter lower - 3 door – Release rear seat squab and fold seat forward.
  1. Release load space lamp from trim casing.
  2. Disconnect 2 Lucars and remove load space lamp.
  3. Remove 6 Torx screws securing luggage compartment carpet retainer.
  4. Remove carpet retainer.
  5. Release 4 turn buckles securing trim casing.
  6. Release and remove trim casing from luggage compartment.

Refit

  1. Position casing in luggage compartment.
  2. Fit turn buckles
  3. Fit luggage compartment carpet retainer and fit Torx screws.
  4. Position load space lamp to casing, connect Lucars and secure lamp in casing.
  5. Reposition rear seat.
