Land Rover Freelander Body Repair Manual (1998 on)05 · Body
05 · Body & interior

All models:

Make
Land Rover
Model
Freelander Body Repair Manual
Year
1998 on
Section
Interior trim components › All models:
BodyAll models: · page 1 of 2

All models:

All models:

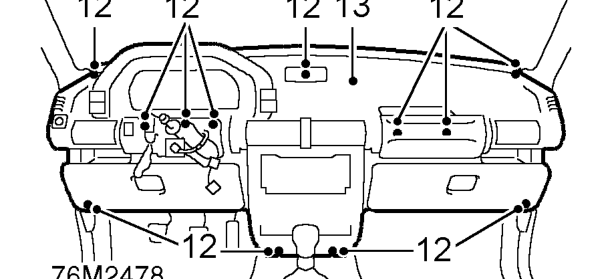

  1. Remove 12 bolts securing fascia.
  2. With assistance remove fascia. Do not carry out further dismantling if component is removed for access only.
All models: – With assistance remove fascia. Do not carry out further dismantling if component is remove

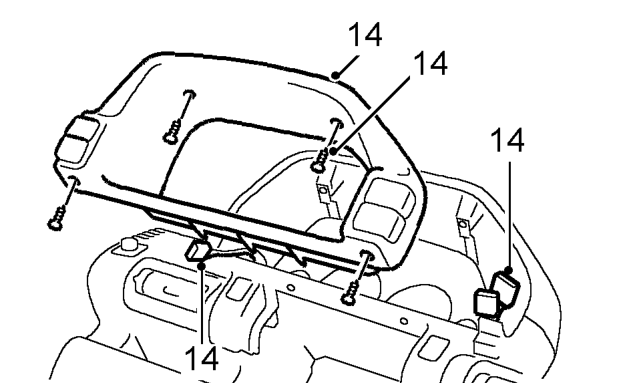

  1. Remove 4 screws, disconnect 3 multiplugs from switches, and remove instrument bezel finisher.
All models: – Remove 4 screws, disconnect 3 multiplugs from switches, and remove instrument bezel finish

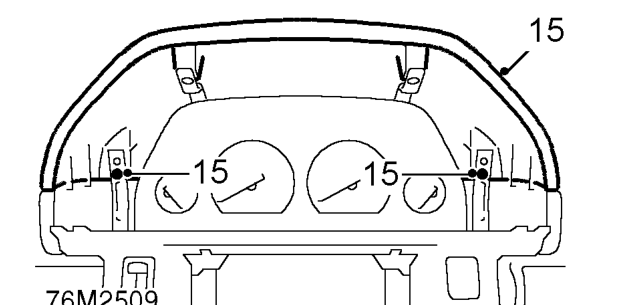

  1. Remove 2 screws from instrument upper cover and remove cover.
All models: – Remove 2 screws from instrument upper cover and remove cover.

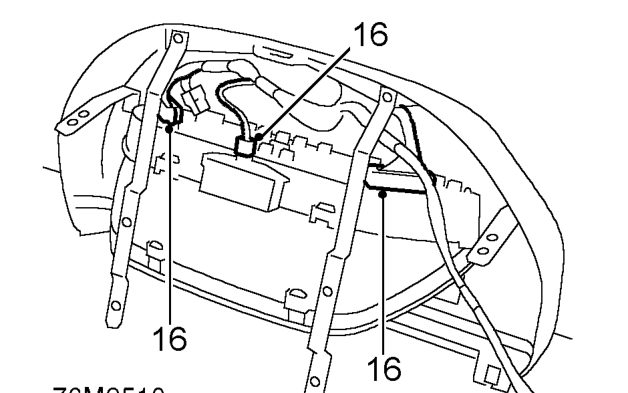

  1. Disconnect 3 multiplugs from instrument pack.
All models: – Disconnect 3 multiplugs from instrument pack.

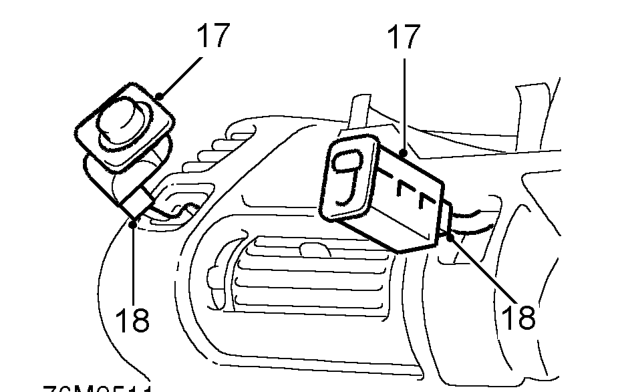

  1. Release mirror and headlamp leveling switches.
  2. Disconnect multiplugs from mirror switch and headlamp leveling switch.
