Land Rover Freelander Body Repair Manual (1998 on)05 · Body
05 · Body & interior

Models with sun roof:

Make
Land Rover
Model
Freelander Body Repair Manual
Year
1998 on
Section
Interior trim components › Models with sun roof:
BodyModels with sun roof:
Diagram

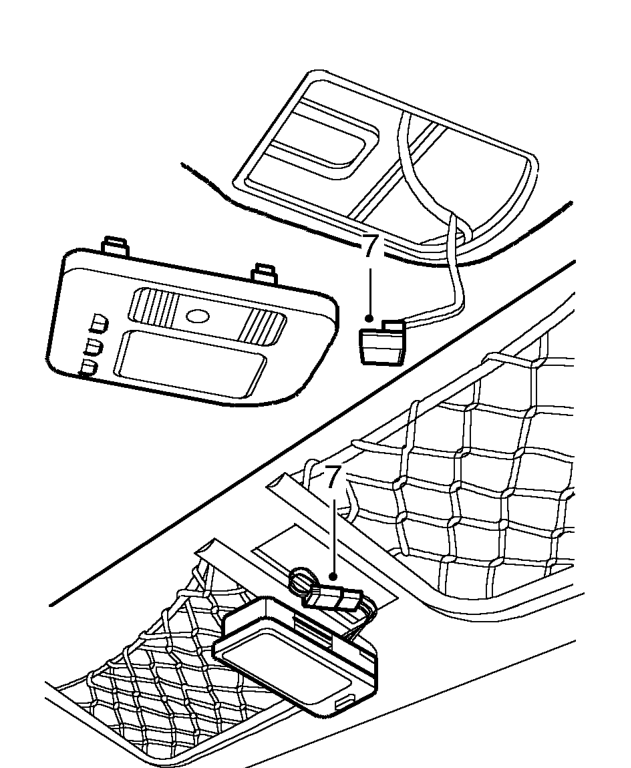

  1. Release roof lamps, disconnect multiplugs and remove roof lamps.
Release roof lamps, disconnect multiplugs and remove roof lamps.

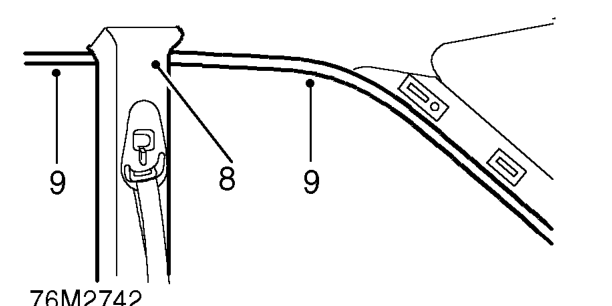

  1. Release both B/C’ post upper finishers and position aside.
  2. Release headlining from front and rear door aperture seals.
Release headlining from front and rear door aperture seals.

Models with sun roof:

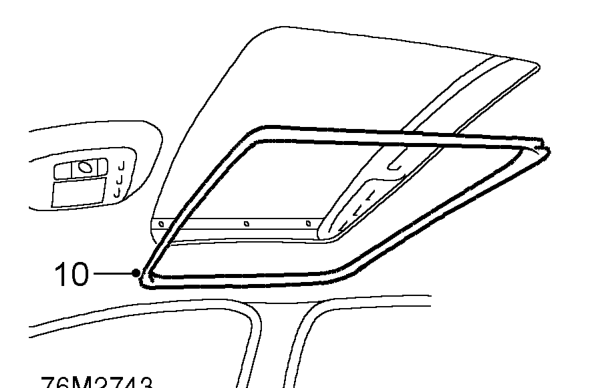

  1. Release and remove sun roof surround finisher from sunroof aperture.
Models with sun roof: – Release and remove sun roof surround finisher from sunroof aperture.

All models:

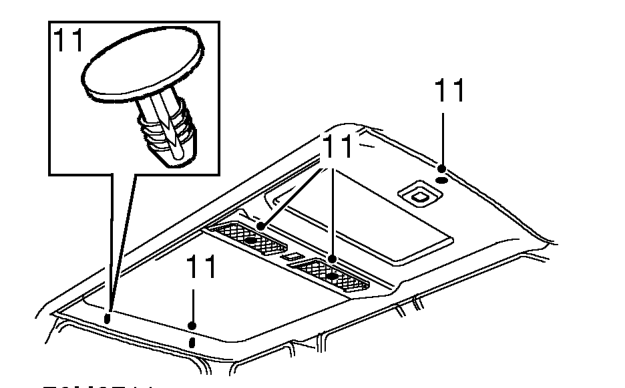

  1. Remove 5 retaining studs from headlining.
  2. With assistance remove headlining through tail door.
