Casing - rear quarter lower - 5 door

CASING - REAR QUARTER LOWER - 5 DOOR

Service repair no - 76.13.12

Remove

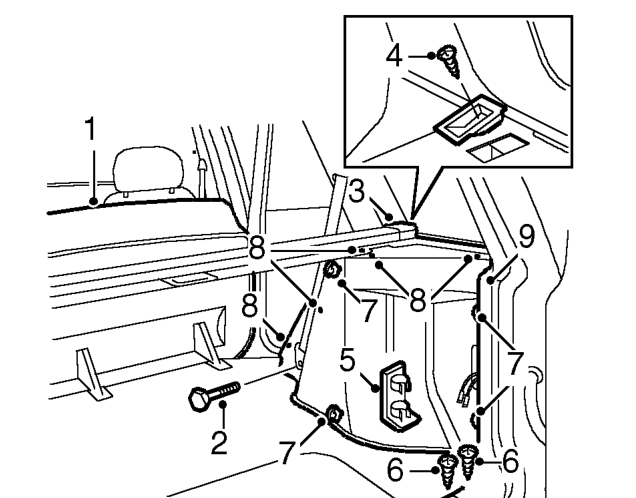

1. Release back of rear seat and fold forward.
2. Remove bolt securing rear seat belt lower mounting and position seat belt aside.
3. Release load space cover from retainers and remove cover.
4. Remove screw securing load space cover retainer and remove retainer.
5. Release load space lamp from trim casing. Disconnect 2 Lucars and remove load space lamp.
6. Remove 2 screws securing casing to load space carpet retainer.
7. Release 4 turn buckles securing trim casing.
8. Release trim casing from 5 retaining clips.

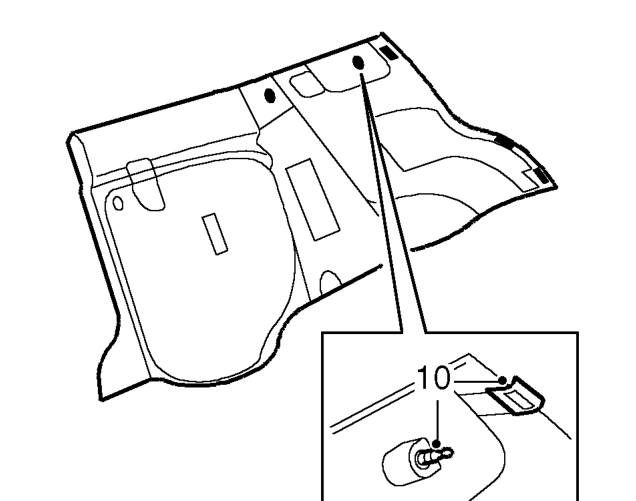

9. Remove trim casing from load space.

10. Remove 5 retaining clips from casing.

Refit

1. Fit retaining clips to casing.
2. Position casing in load space, locate and secure retaining clips.
3. Fit turn buckles
4. Fit screws securing casing to carpet retainer.
5. Position load space lamp to casing, connect Lucars and secure lamp in casing.
6. Position load space cover retainer and secure with screw.
7. Fit load space cover and secure in retainers.
8. Position rear seat belt and tighten bolt to 40 Nm
9. Lower seats and secure back of seat in position.
