Land Rover Freelander Body Repair Manual (1998 on)05 · Body
05 · Body & interior

Casing - rear quarter upper - 5 door

Make
Land Rover
Model
Freelander Body Repair Manual
Year
1998 on
Section
Interior trim components › Casing - rear quarter upper - 5 door
BodyCasing - rear quarter upper - 5 door

CASING - REAR QUARTER UPPER - 5 DOOR

Service repair no - 76.13.13

Remove

  1. Remove rear quarter lower casing. See this section.

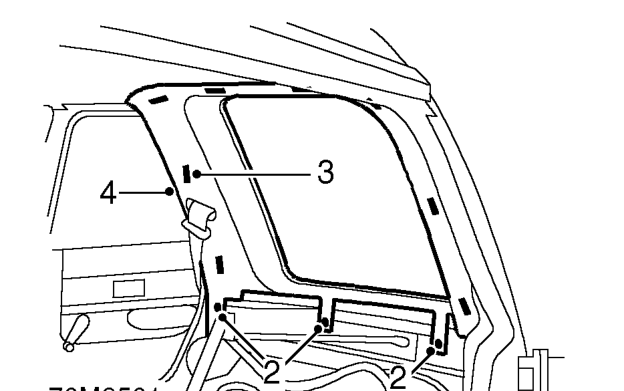

Casing - rear quarter upper - 5 door – Remove rear quarter lower casing. See this section.
  1. Remove 3 screws securing upper casing to body.
  2. Release casing from 8 retaining clips.
  3. Remove upper casing from load space.

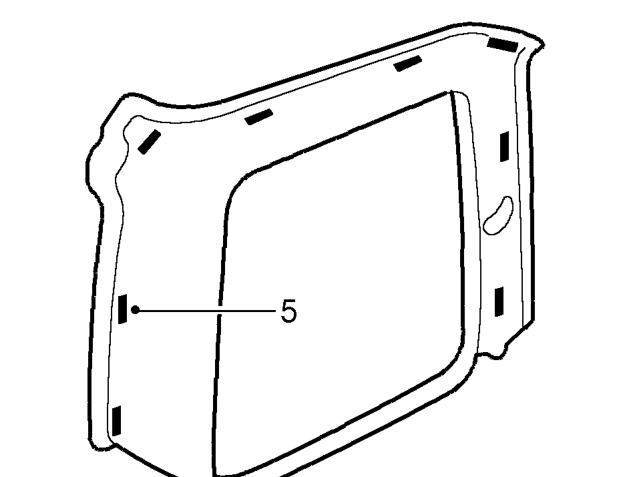

Casing - rear quarter upper - 5 door – Remove upper casing from load space.
  1. Remove 8 retaining clips from casing

Refit

  1. Fit retaining clips to casing.
  2. Position casing to body and secure retaining clips.
  3. Fit screws securing bottom of casing.
  4. Fit rear quarter lower casing. See this section.
