CARPET - LOADSPACE

Service repair no - 76.49.04

Remove

  1. Remove both rear quarter lower trim casings. See this section.
Carpet - loadspace – Remove both rear quarter lower trim casings. See this section.

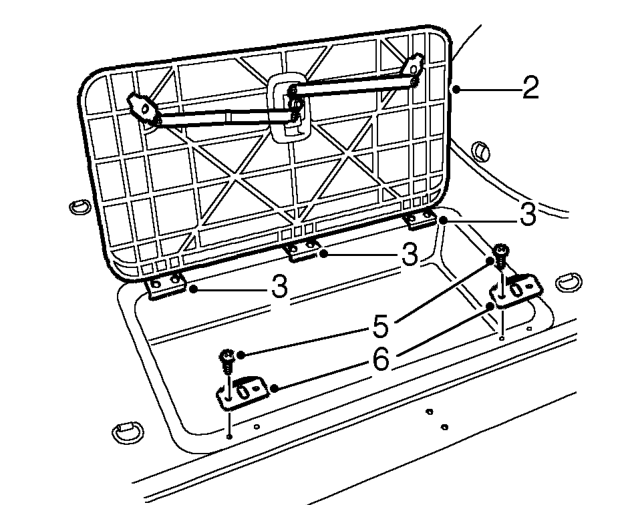

  1. Open lid on security box.
  2. Remove 6 screws securing lid.
  3. Remove lid.
  4. Remove 4 screws securing lid latch strikers.
  5. Remove both strikers.
Carpet - loadspace – Remove both strikers.

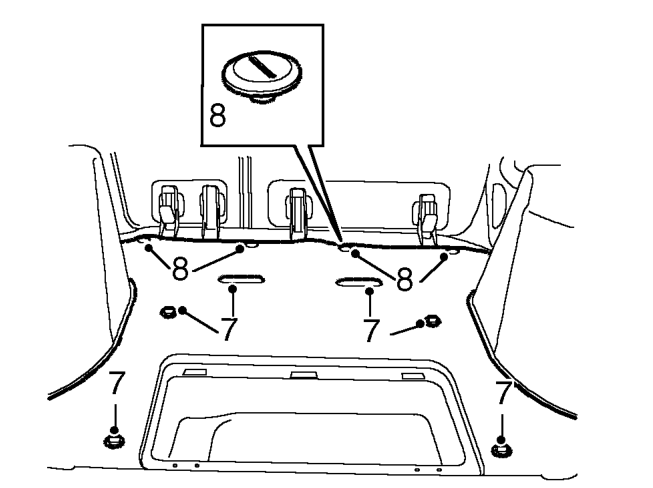

  1. Release carpet from rear seat strikers and lashing eyes.
  2. Remove 4 buckles from rear carpet.
  3. Remove carpet.

Refit

  1. Position carpet in loadspace.
  2. Fit buckles to rear carpet.
  3. Fit lid latch strikers and secure with screws.
  4. Fit lid and secure with screws.
  5. Close lid.
  6. Fit rear quarter lower trim casings. See this section.
