CONSOLE - REAR

Service repair no - 76.25.04

Remove

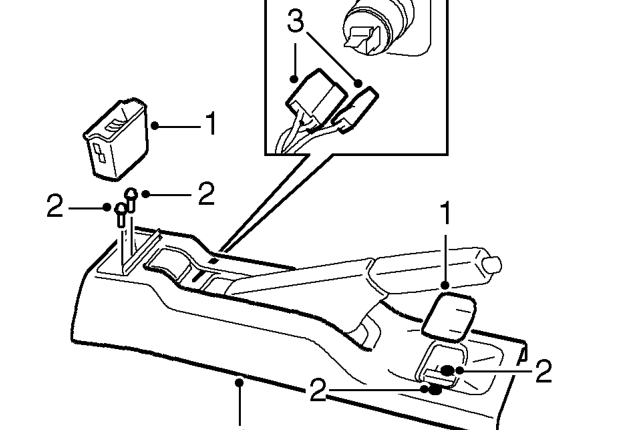

1. Remove ashtray and screw cover.
2. Remove 4 screws from console.
3. Raise console and disconnect Lucar and multiplug from cigar lighter.

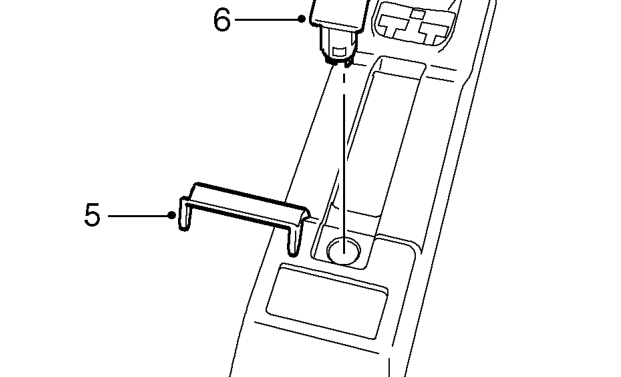

4. Remove rear console.

5. Remove ashtray lid.
6. Remove cigar lighter.

Refit

1. Fit cigar lighter.
2. Fit ashtray lid.
3. Position rear console and connect Lucar and multiplug to cigar lighter.
4. Fit and tighten screws.
5. Fit ashtray and screw cover.
