Land Rover Freelander Body Repair Manual (1998 on)05 · Body
05 · Body & interior

Headlining - 3 door

Make
Land Rover
Model
Freelander Body Repair Manual
Year
1998 on
Section
Interior trim components › Headlining - 3 door
BodyHeadlining - 3 door · page 1 of 2

HEADLINING - 3 DOOR

Service repair no - 76.64.15

Remove

  1. Fold front seat squabs forward.
  2. Remove both sun visors. See this section.
  3. Remove both ’A’ post trims. See this section.
Headlining - 3 door – Remove both ’A’ post trims. See this section.

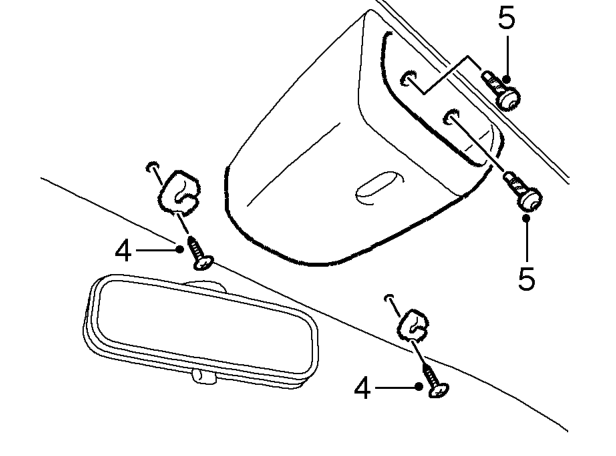

  1. Remove 2 screws from both sun visor clips and collect clips.
  2. Remove 2 screws securing headlining to front end of roof panel.
Headlining - 3 door – Remove 2 screws securing headlining to front end of roof panel.

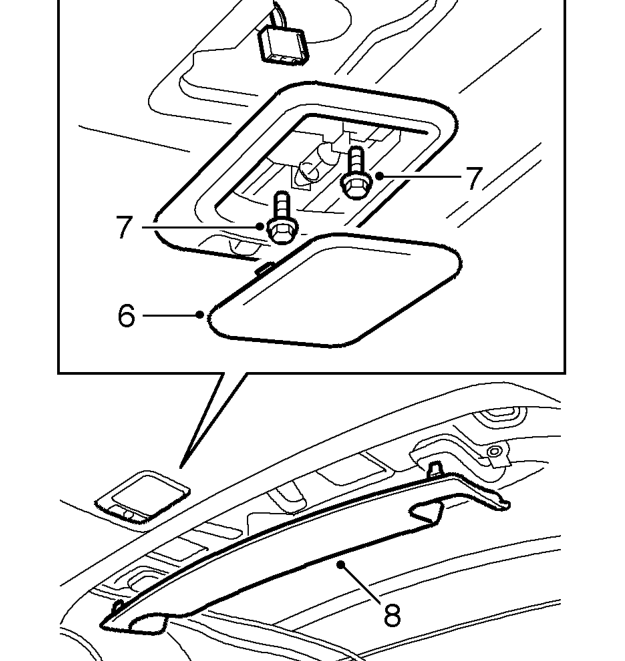

  1. Remove roof lamp lens.
  2. Remove 2 screws, release roof lamp and disconnect multiplug.
  3. Release headlining rear finisher from roof panel and remove finisher.
