Headlining - 3 door (page 2 of 2)

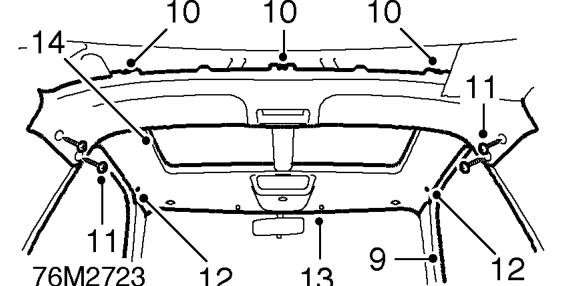

9. Release door aperture seals to release headlining.
10. Release 3 studs securing rear edge of headlining to roof panel.
11. Remove 4 screws securing headlining to ’B’ posts.
12. Release 2 studs at LH and RH side of headlining.
13. Lower front edge of headlining.
14. Release sun roof seal and remove headlining.

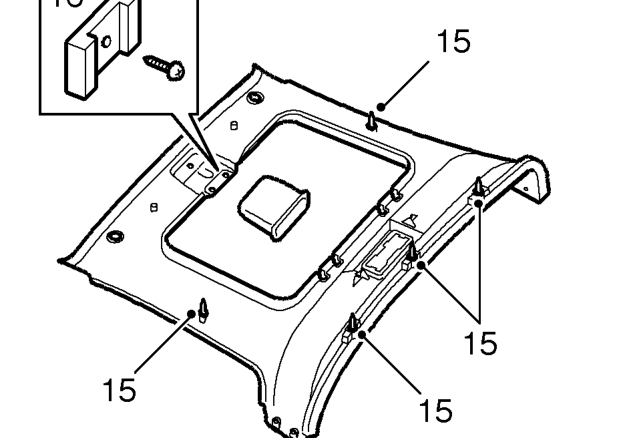

15. Remove studs from headlining.
16. Remove 3 screws and remove pocket from headlining.

Refit

1. Fit pocket to headlining and secure with screws.
2. Fit studs to headlining.
3. Position headlining and secure studs to roof panel.
4. Fit and tighten screws to ’B’ posts and roof panel.
5. Secure headlining behind rear vent rubbers.
6. Fit headlining rear finisher.
7. Refit door aperture seals.
8. Position sun roof seal to headlining.
9. Position roof lamp and connect multiplug.
10. Tighten roof lamp screws and fit lens.
11. Position sun visor clips and tighten screws.
12. Fit sun visors. See this section.
13. Fit both ’A’ post finishers. See this section.
14. Reposition front seat squabs.
