BodyFascia

FASCIA

Service repair no - 76.46.23

Remove

  1. Remove front console. See this section.
  2. Remove rotary coupler. See RESTRAINT SYSTEMS, Repairs.
Fascia – Remove rotary coupler. See RESTRAINT SYSTEMS, Repairs.

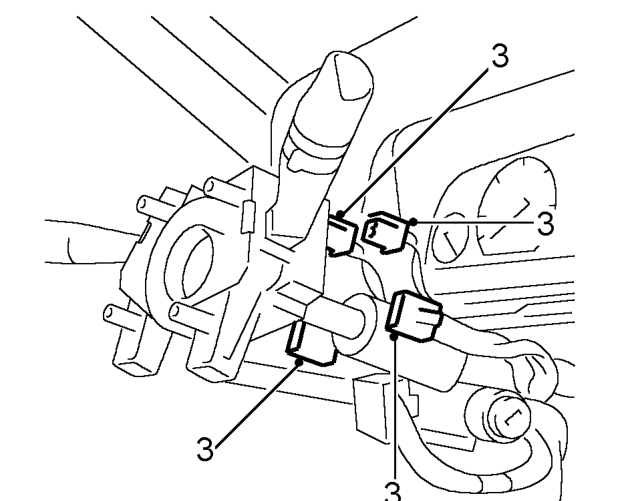

  1. Disconnect 4 multiplugs from wiper/ indicator switch.
Fascia – Disconnect 4 multiplugs from wiper/ indicator switch.

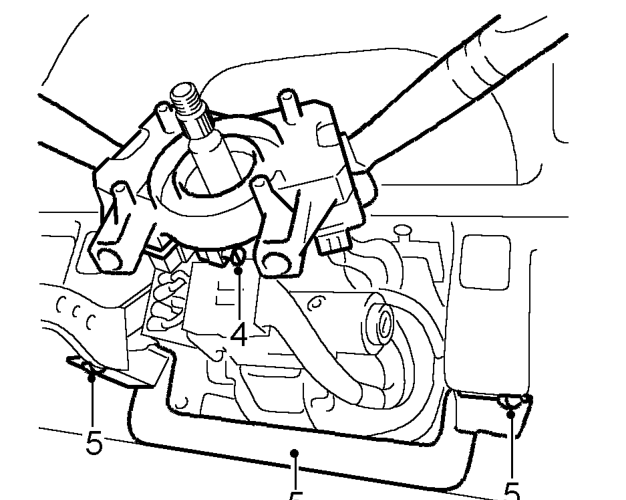

  1. Loosen clamping screw and remove wiper/ indicator switch.
  2. Remove 2 screws from steering column lower finisher and remove finisher.
Fascia – Remove 2 screws from steering column lower finisher and remove finisher.

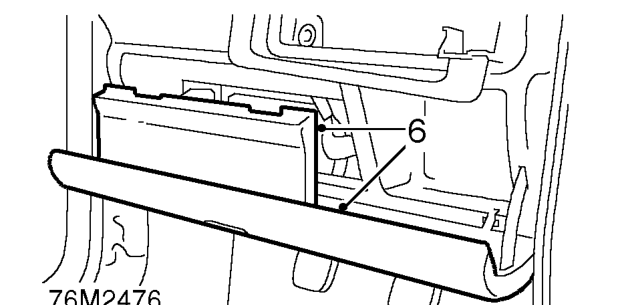

  1. Open driver’s glove box lid and remove fuse box cover.
Fascia – Open driver’s glove box lid and remove fuse box cover.

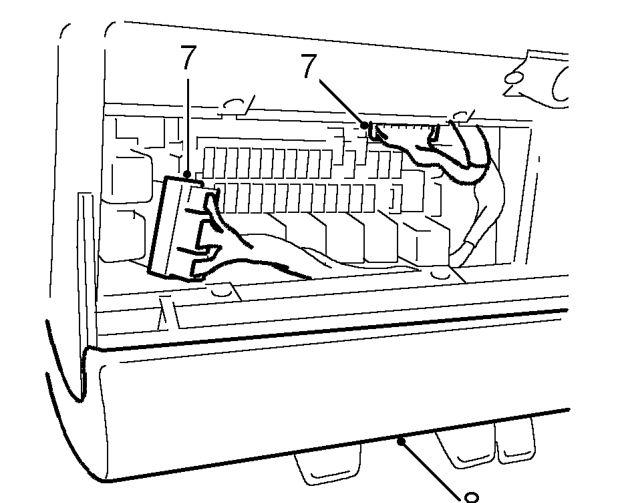

  1. Disconnect 2 multiplugs from fuse box.
  2. Close glove box lid.
  3. Remove clock. See ELECTRICAL, Repairs.
  4. Remove both ’A’ post finishers See this section.
  5. Models without passenger airbag: Remove fascia stowage box. See this section.

Models with passenger airbag:

Remove passenger airbag. See RESTRAINT SYSTEMS, Repairs.
