Land Rover Freelander Workshop Manual (1998-2000)24 · Body
24 · Body & interior

Carpet - loadspace

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Interior trim components › Carpet - loadspace
BodyCarpet - loadspace

CARPET - LOADSPACE

Service repair no - 76.49.04

Remove

  1. Remove both rear quarter lower trim casings. See this section.
Carpet - loadspace – Remove both rear quarter lower trim casings. See this section.

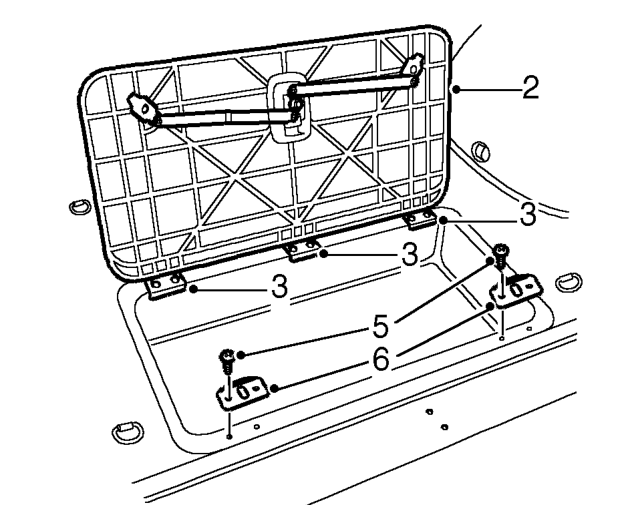

  1. Open lid on security box.
  2. Remove 6 screws securing lid.
  3. Remove lid.
  4. Remove 4 screws securing lid latch strikers.
  5. Remove both strikers.
Carpet - loadspace – Remove both strikers.

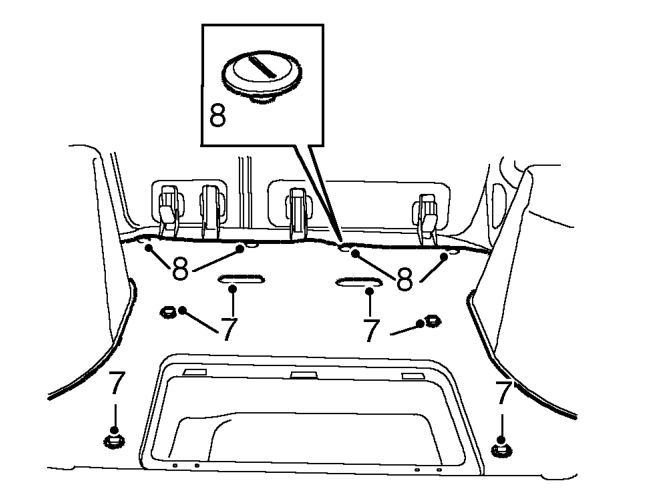

  1. Release carpet from rear seat strikers and lashing eyes.
  2. Remove 4 buckles from rear carpet.
  3. Remove carpet.

Refit

  1. Position carpet in loadspace.
  2. Fit buckles to rear carpet.
  3. Fit lid latch strikers and secure with screws.
  4. Fit lid and secure with screws.
  5. Close lid.
  6. Fit rear quarter lower trim casings. See this section.
