Models without passenger airbag:

Models without passenger airbag:

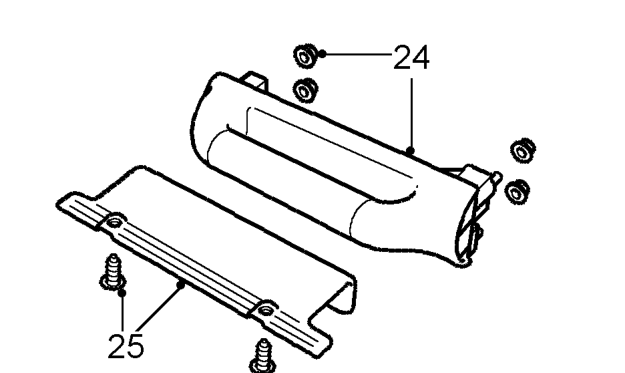

24. Remove 4 nuts from grab handle and remove handle.

Models with passenger airbag:

25. Remove 2 screws from airbag lower finisher and remove finisher.

All models:

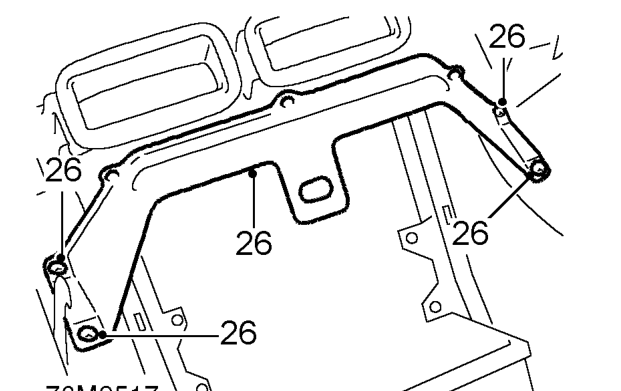

26. Remove 4 screws from centre bracket and remove bracket.

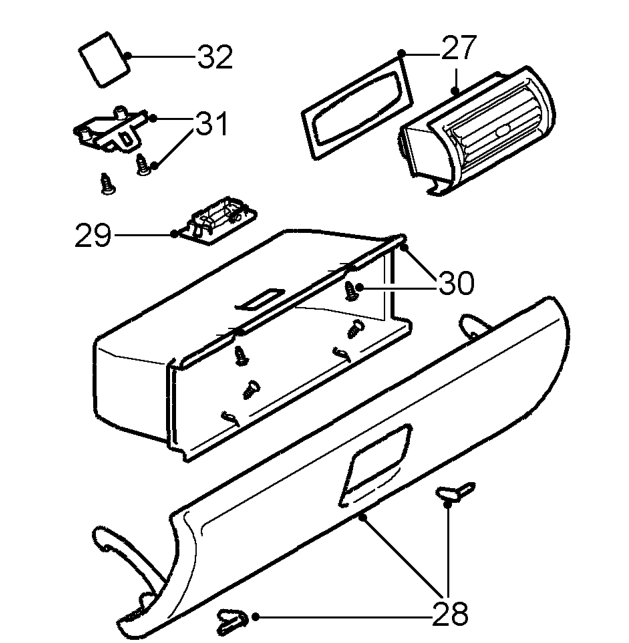

27. Remove 4 face level vents and collect seals.
28. Remove glove box hinge pins and remove glove box lids.
29. Remove glove box lamp and mat.
30. Remove 4 screws from glove box and remove glove box.
31. Remove 2 screws from each glove box lock and remove locks.
32. Remove switch blank.
33. Noting their fitted positions, remove 11 spire nuts and 3 harness clips.
34. Remove fascia and coin tray mats.
