Land Rover Freelander Workshop Manual (1998-2000)24 · Body
24 · Body & interior

Casing - body side - rear

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Interior trim components › Casing - body side - rear
BodyCasing - body side - rear

CASING - BODY SIDE - REAR

Service repair no - 76.13.57

Remove

  1. Remove rear seat. See Seats and seat belts.

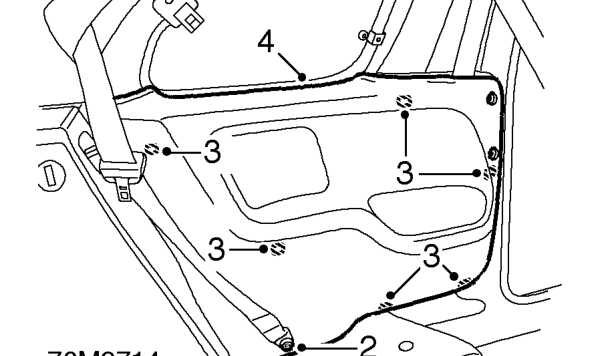

Casing - body side - rear – Remove rear seat. See Seats and seat belts.
  1. Remove Torx bolt securing rear seat belt lower to body and position seat belt aside.
  2. Release 6 trim clips and remove trim casing.
  3. Remove 6 trim fasteners from body panel. Do not carry out further dismantling if component is removed for access only.

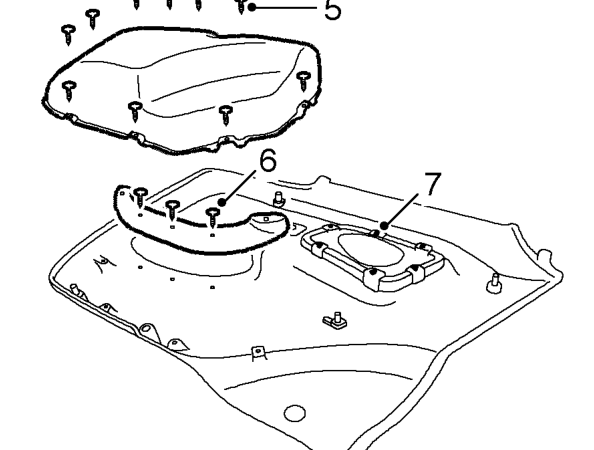

Casing - body side - rear – Remove 6 trim fasteners from body panel. Do not carry out further dismantling if component
  1. Noting the position of the 3 long screws, remove 10 Torx screws and remove pocket from trim casing.
  2. Remove 3 screws and remove pocket finisher.
  3. Release 6 tags and remove speaker grille.
  4. Position speaker grille on replacement casing and secure tags.
  5. Position pocket finisher and tighten screws.
  6. Position pocket and tighten Torx screws

Refit

  1. Fit trim fasteners to trim casing.
  2. Position trim casing and secure clips.
  3. Position seat belt and tighten Torx bolt to 50 Nm.
  4. Fit rear seat. See Seats and seat belts.
