Models with sun roof:

Do not carry out further dismantling if component is removed for access only.

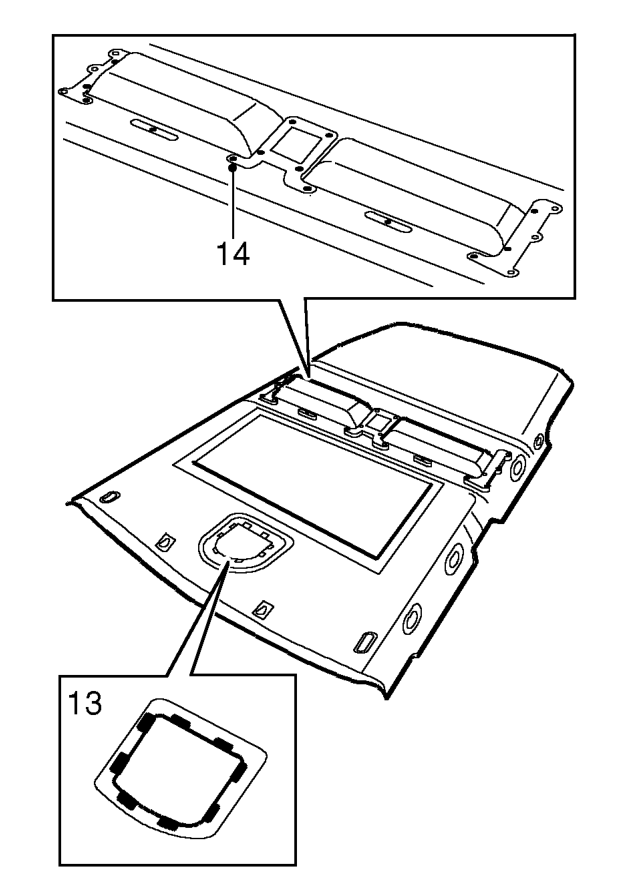

13. Release 8 tags securing front roof lamp support and remove support.
14. Remove 14 nuts from stowage pockets, collect backing plates and remove stowage pockets.
15. Position stowage pockets and backing plates on replacement headlining and secure with nuts.
16. Position roof lamp support on replacement headlining and secure retaining tags.

Refit

1. With assistance, position headlining and secure with retaining studs.

Models with sun roof:

2. Position sunroof surround finisher and secure in position.

All models:

3. Locate headlining to front and rear door aperture seals.
4. Fit and secure ’B/C’ post upper finishers.
5. Connect multiplugs and fit roof lamps.
6. Fit grab handle blanking plugs.
7. Fit grab handles, tighten screws and fit screw covers.
8. Fit sun visor clips and tighten screws.
9. Fit both sun visors. See this section.
10. Fit both ’A’ post trims. See this section.
11. Fit rear quarter upper trim casings. See this section.
