BodyCasing - rear quarter upper - 3 door

CASING - REAR QUARTER UPPER - 3 DOOR

Service repair no - 76.13.13

Remove

  1. Remove rear quarter lower casing. See this section.
  2. Remove body rear side casing. See this section.

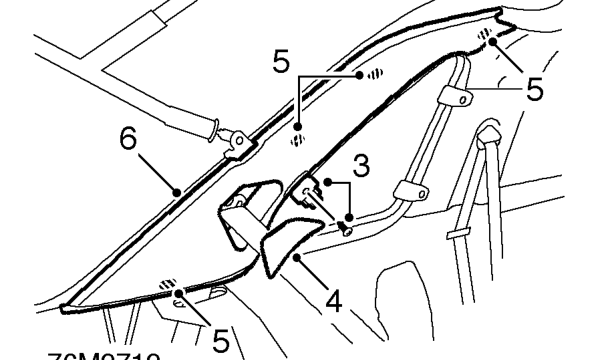

Casing - rear quarter upper - 3 door – Remove body rear side casing. See this section.
  1. Remove screw and release rear vent catch.
  2. Remove seat belt access cover from upper casing.
  3. Release 4 clips securing upper casing.
  4. Remove upper casing.

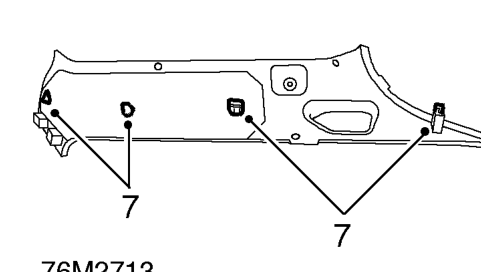

Casing - rear quarter upper - 3 door – Remove upper casing.
  1. Remove 4 retaining clips from casing

Refit

  1. Fit retaining clips to casing.
  2. Position casing, align seat belt and secure casing retaining clips.
  3. Fit seat belt access cover.
  4. Position rear vent sealing rubber to upper casing.
  5. Position rear vent catch and tighten screw.
  6. Fit side casing. See this section.
  7. Fit lower casing. See this section.
